SMP Male Microstrip RF Coaxial Connector – PCB Solder Type, Gold-Plated

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMP-JHD113

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8 Weeks

Supply Ability : 100000pcs/year

Product name : SMP Male Microstrip RF Coaxial Connector – PCB Solder Type, Gold-Plated

Characteristic impedance : 50Ω

Dielectric withstanding voltage : 500V

Insulation resistance : ≥5000MΩ

Durability : 500 times

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Contact Now

SMP Male Microstrip RF Coaxial Connector – PCB Solder Type, Gold-Plated

Product Overview

The SMP series is an ultra-miniature, push-on/self-locking RF coaxial connector designed for high-frequency, high-density modular applications. With its compact size, fast mating, and strong vibration resistance, it offers a reliable solution for space-constrained RF system designs.

Applications
Widely used in antennas, radar systems, communication equipment, and other environments requiring dense, high-performance RF interconnects.

Key Features

    SMP male interface with limited detent for secure yet easy blind-mating

    Microstrip-compatible, PCB solder mount (cartridge welding)

    Gold-plated for superior conductivity and corrosion resistance

    Compact and lightweight, ideal for high-density layouts

    High-frequency capability with excellent mechanical and electrical performance

    Quick and reliable connection for modular RF systems

Product Appearance

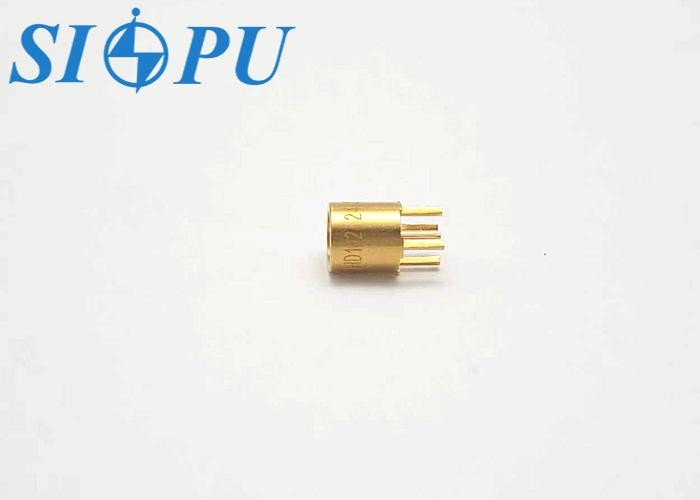

         SMP Male Microstrip RF Coaxial Connector – PCB Solder Type, Gold-Plated



Important Technical Parameter





Electrical property



 Temperature range -65～+125℃



Characteristic impedance



 50Ω Frequency range DC-40GHz



Dielectric withstanding voltage



 500V VSWR ≤1.1+0.01F(GHz)



Insulation resistance



 ≥5000MΩ Insertion loss ≤0.07√F(GHz)dB



Contact resistance



 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times



Limited detent



(max)

Engagement force

 45N

(min)

Separation force

 9N



Materials and Surface Treatment





Center conductor



 Beryllium bronze, gold plating Insulating medium PTFE



Outer conductor



 Brass, gold plating / /





Product Image Gallery
