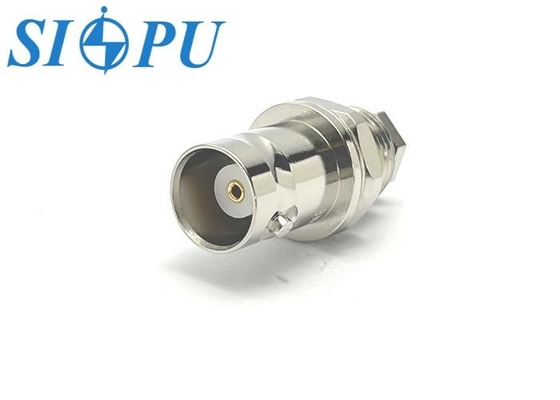

BNC Female RF Coaxial Connector – Thread Mount, for RG316/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : Gender

Model Number : BNC-KY3-1

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Product name : BNC Female RF Coaxial Connector – Thread Mount, for RG316/U Cable

Gender : Female

Type : Straight

Material : Brass

Plating : Nickle

Durability : 500 times

Insulating medium : PTFE

Contact Now

BNC Female RF Coaxial Connector – Thread Mount, for RG316/U Cable

Product Overview

The BNC series is a bayonet-style RF coaxial connector, developed and manufactured in accordance with MIL-C-39012/16–24 standards. It features quick connect/disconnect capability and reliable electrical contact, making it fully interchangeable with similar international products. This series is particularly well-suited for applications requiring frequent connection and disconnection.

Applications:
Widely used in electronic instruments, radio equipment, and the transmission of analog or digital video signals.

Product Features:

    Thread-mounted female connector

    Compatible with RG316/U coaxial cable

    Bayonet coupling mechanism for fast and secure connection

    Reliable electrical contact with good vibration resistance

    Ideal for compact, mobile, or frequently accessed RF systems



Product Specifications

                   BNC Female RF Coaxial Connector – Thread Mount, for RG316/U Cable

Important Technical Parameters





Electrical property



 Temperature range -55～+165℃



Characteristic impedance



 50Ω Frequency range DC-4GHz



Dielectric withstanding voltage



 1500V VSWR ≤1.3





Insulation resistance



 ≥5000MΩ Insertion loss

≤0.06√F(GHz)dB
Contact resistance Center conductor ≤2.0mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500times



Materials and Surface Treatment





Center conductor



 Beryllium bronze,gold plating Insulating medium PTFE



Outer conductor



 Brass,nickel plating / /



Product Image Gallery

BNC Female RF Coaxial Connector – Thread Mount, for RG316/U CableBNC Female RF Coaxial Connector – Thread Mount, for RG316/U Cable
