Precision SSMA Female Flange Connector for 2.2mm Semi-Rigid/Semi-Flex Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SSMA-KFB2

Certification : IOS9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Supply Ability : 100000pcs/year

Product name : Precision SSMA Female Flange Connector for 2.2mm Semi-Rigid/Semi-Flex Cable

Durability : 500 times

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Contact Now

Precision SSMA Female Flange Connector for 2.2mm Semi-Rigid/Semi-Flex Cable

Product Overview

The SSMA series RF coaxial connector is a miniaturized version of the SMA connector, designed for applications requiring compact size and high performance. It features a wide frequency bandwidth, outstanding mechanical and electrical characteristics, and high reliability. This series is widely used in fields such as aviation, aerospace, and microwave communications.

Applications:
Base stations, RF modules, electronic components, test instruments, and telecommunication systems.

Product Features:
Compatible with 1# semi-rigid or semi-flexible coaxial cables, the connector offers a compact form factor, excellent electrical performance, and high reliability—ideal for demanding RF environments.

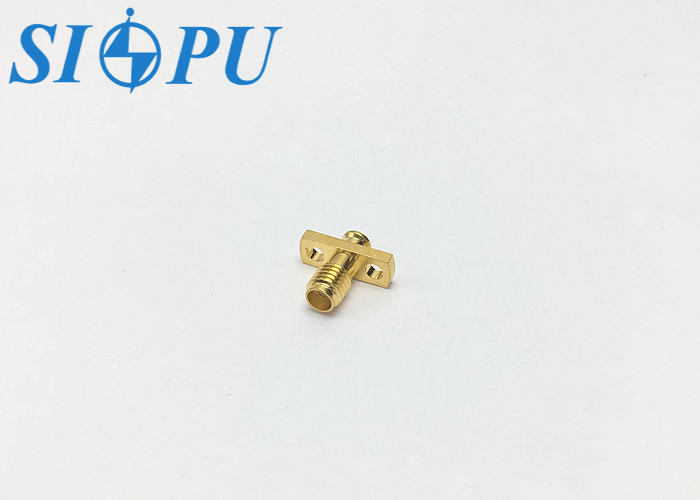

Product Appearance

   Precision SSMA Female Flange Connector for 2.2mm Semi-Rigid/Semi-Flex Cable

Important Technical Parameter





Electrical property



 Temperature range -55～+125℃



Characteristic impedance



 50Ω Frequency range DC-30GHz



Dielectric withstanding voltage



 750V VSWR ≤1.05+0.012F(GHz)



Insulation resistance



 ≥1000MΩ Insertion loss ≤0.05√F(GHz)dB



Contact resistance



 Center conductor ≤4.0mΩ Mechanical property
Outer conductor ≤2.5mΩ Durability 500times



Materials and Surface Treatment



Center conductor



 Beryllium bronze, gold plating Insulating medium PTFE



Outer conductor



 Brass, gold plating / /



Product Image Gallery

Precision SSMA Female Flange Connector for 2.2mm Semi-Rigid/Semi-Flex CablePrecision SSMA Female Flange Connector for 2.2mm Semi-Rigid/Semi-Flex Cable
