SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted

Name: SSMA Female RF Coaxial Connector Microstrip Flange Mounted
Brand: SIPU
Price: 1 USD

Buy cheap SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted product

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SSMA-KFD7

Certification : IOS9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8weeks

Supply Ability : 100000pcs/year

Product name : SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted

Product Overview

SSMA RF coaxial connectors are known for their compact size, high reliability, and excellent mechanical and electrical performance. Designed for use with small-diameter cables, they are widely applied in digital communication systems, microwave equipment, and other high-frequency environments.

Applications

Test and measurement instruments

Electronic components and modules

Base stations

Telecommunication systems

Product Features

Two-hole flange-mounted microstrip socket

Microstrip dimensions: φ0.9 × 1.5 mm

Stable electrical performance and low VSWR

Compact design for high-density layouts

High mechanical durability and easy installation

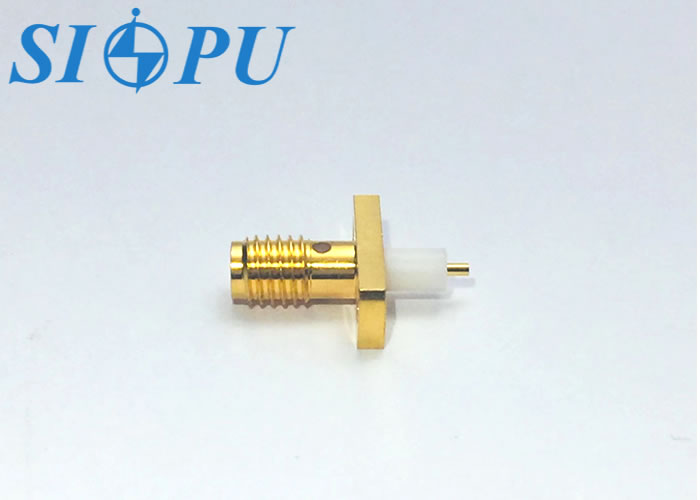

Product Appearance

SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted

Important Technical Parameter

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-30GHz
Dielectric withstanding voltage		750V	VSWR	≤1.05+0.012F(GHz)
Insulation resistance		≥1000MΩ	Insertion loss	≤0.05√F(GHz)dB
Contact resistance	Center conductor	≤4.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.5mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

Product Image Gallery

SSMA Female RF Coaxial Connector – Microstrip, Flange Mounted
