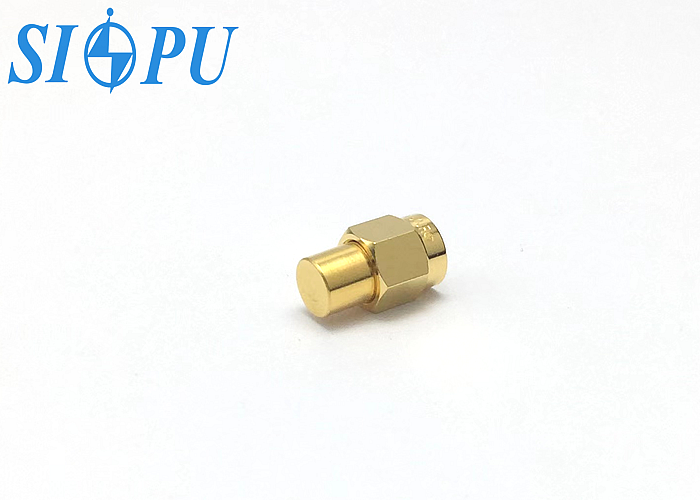

SSMA Male Coaxial RF Termination Load – 1W Power Rating

  • 1
  • 2
  • 3

Brand Name : SIPU

Model Number : SSMA-50JR

Certification : ISO9001, R0HS, CE

Place of Origin : China

MOQ : 50

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 5-8 Work days

Packaging Details : Carton

Price : Discuss

Supply Ability : 100000pcs/year

Product name : SSMA Male Coaxial RF Termination Load – 1W Power Rating

Gender : Male

Type : Straight

Material : Brass

Plating : Gold

Power : 1W

Characteristic impedance : 50Ω

Contact Now

SSMA Male Coaxial RF Termination Load – 1W Power Rating

Product Overview

The coaxial termination load is a passive microwave component designed to absorb RF/microwave energy from a transmission line, preventing signal reflection and enhancing circuit matching. It is ideal for precision testing and system calibration in high-frequency electronic environments.

Application Scope

    System testing of radio communication equipment

    RF signal transmission analysis

    Microwave instrumentation

    Laboratory and field measurement applications

    Indoor distributed terminal setups

Product Features

    SSMA male connector interface

    Rated for 1W power dissipation

    Wide operating bandwidth with excellent impedance matching

    Compact form factor for space-constrained installations

    Robust mechanical construction with superior electrical performance

Product Specifications



                   SSMA Male Coaxial RF Termination Load – 1W Power Rating

Important Technical Parameters



Electrical property





Temperature range

 -65～+125℃



Characteristic impedance



 50Ω



Frequency range

 DC-18GHz



Power



 1W

VSWR

≤1.2





Mechanical property

Durability

500times



Materials and surface treatment





Center conductor



Brass, gold plating

Insulating medium

PTFE



Outer conductor



Brass, gold plating

Sealing ring

Silicon rubber



Product Image Gallery

SSMA Male Coaxial RF Termination Load – 1W Power RatingSSMA Male Coaxial RF Termination Load – 1W Power RatingSSMA Male Coaxial RF Termination Load – 1W Power Rating
