SMA Female RF Connector Angled PCB Solder Microstrip

Name: SMA Female RF Connector Angled PCB Solder Microstrip
Brand: SIPU
Price: 1 USD

Buy cheap SMA Female RF Connector Angled PCB Solder Microstrip product

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-KWHD5

Certification : ISO9001-2017 RoHS

Price : Discuss

Packaging Details : Carton

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : Right angle connector

Gender : Female

Type : Right angle

Material : Brass

Plating : Gold

Durability : 500 times

High light : SMA Female Angled PCB Solder Microstrip RF Connector

Contact Now

SMA Female Angled PCB Solder Microstrip RF Connector

Product introduction

SMA series connectors, a wide range of applications, threaded miniature coaxial connectors, suitable for digital communication systems and microwave equipment in RF circuits of microstrip lines or connection cables.
Applications: instrumentation, network, telecommunications, aerospace and navigation, etc.
Product features: four-hole flange installation, microstrip slotting width 0.5 depth 0.9, excellent mechanical and electrical performance, high reliability, frequency bandwidth, etc.

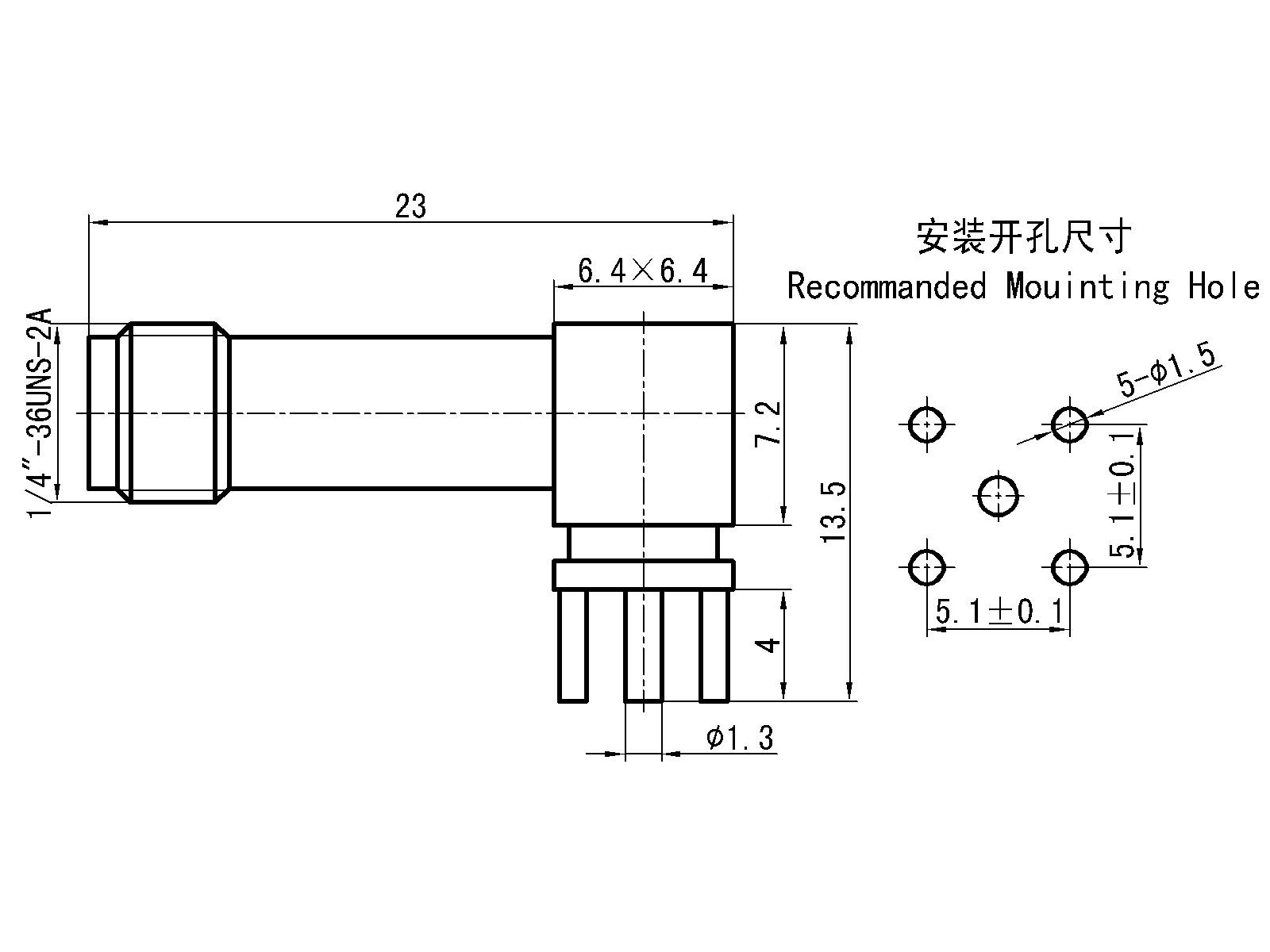

Product specifications

SMA Female RF Connector Angled PCB Solder Microstrip

Important technical parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-18GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.06+0.015F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.08√F(GHz)dB
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500 times

Materials and surface treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

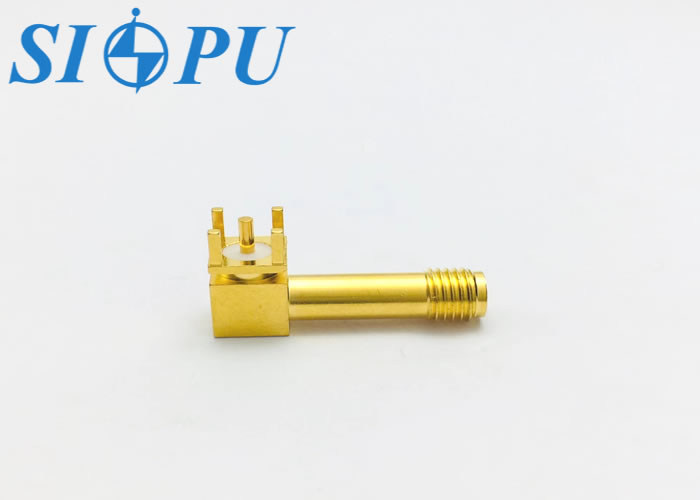

Picture display

Product Tags:

SMA Female RF Connector

Angled Female RF Connector

Microstrip PCB SMA Connector
