Plug In PCB Solder RF Coaxial Connector SMA Female

Name: Plug In PCB Solder RF Coaxial Connector SMA Female
Brand: SIPU
Price: 1 USD

Buy cheap Plug In PCB Solder RF Coaxial Connector SMA Female product

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-KHD-14.5

Certification : ISO9001-2017 RoHS

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : PCB soldering connector

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

High light : plug-in PCB soldering,superior electrical performance

Contact Now

SMA Female PCB Solder RF Coaxial Connector

Product introduction

SMA series connectors are small threaded connections, small size, high reliability, wide frequency bandwidth, superior mechanical and electrical performance, suitable for microwave equipment, communications, aerospace and other fields.
Applications: telecommunications, wireless communications, networks, etc.
Product features: plug-in PCB soldering, small size, high reliability, frequency bandwidth, superior electrical performance, etc.

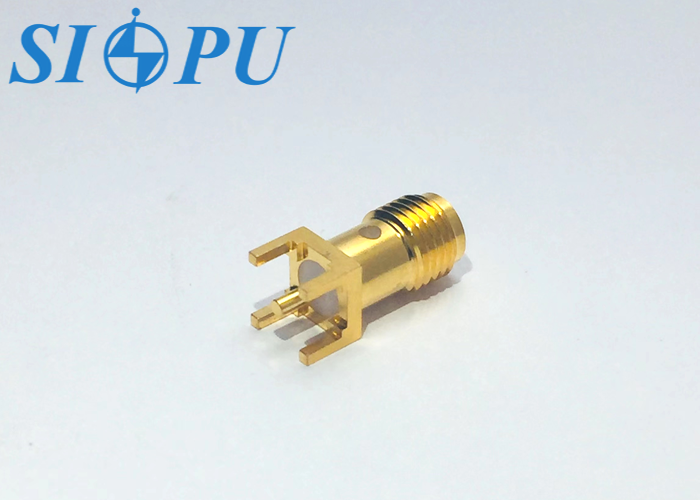

Product appearance

Plug In PCB Solder RF Coaxial Connector SMA Female

Important technical parameter

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-18GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.05+0.012F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.05√F(GHz)dB
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and surface treatment

Center conductor

Beryllium bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,gold plating

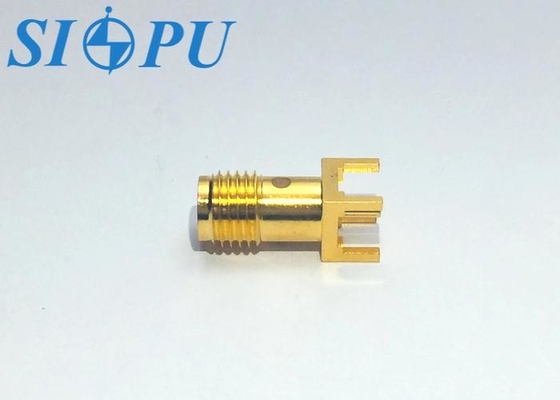

Picture display

Plug In PCB Solder RF Coaxial Connector SMA Female

Product Tags:

Plug In PCB SMA Connector

SMA Female RF Coaxial Connector

PCB SMA RF Coaxial Connector

Plug In PCB Solder RF Coaxial Connector SMA Female Images
