SBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Brand Name : SIPU

Model Number : SBMA-JFB1G-T1

Certification : ISO9001, RoHS, CE

Place of Origin : CHINA

MOQ : 100

Price : DISCUSS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 120000

Delivery Time : 6-8works

Packaging Details : Carton

Product name : SBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Gender : Mela

Type : Type

Material : Stainless

Plating : Steel，passivating

Durability : 500 times

Insulating medium : PTFE

Contact Now

SBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Product Overview

The SBMA series is a new type of low-power blind-mate RF coaxial connector and a miniaturized version of the BMA series. It offers a compact design, high reliability, and is well-suited for the modularization of modern RF systems. Its slide-on interface allows for fast, alignment-free connections, ideal for high-density environments.

Application Scope

    Blind mating between chassis and cabinet modules

    Modular radar, communication, and electronic systems

    High-frequency subsystem integration

Product Features

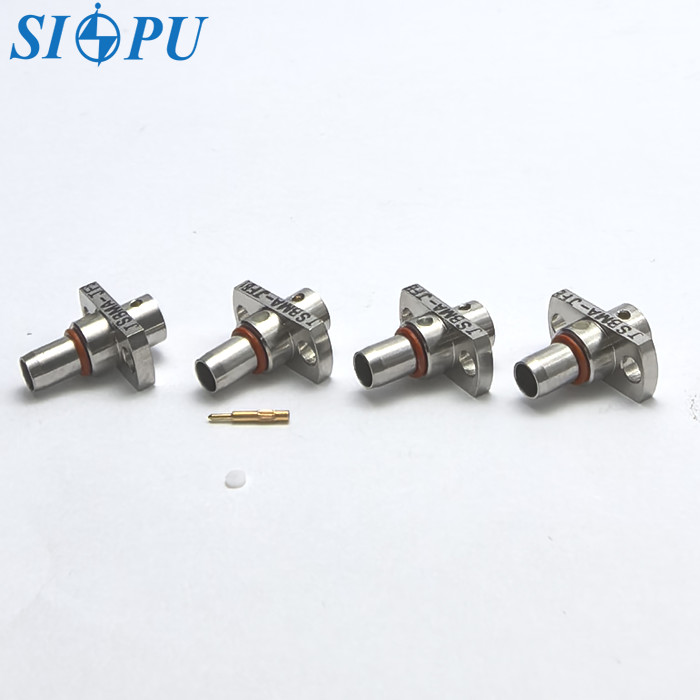

    SBMA male connector with two-hole flange mounting

    Compatible with 1# semi-rigid or semi-flexible coaxial cable

    Compact size with wide bandwidth support

    High mechanical reliability and easy blind connection

    Ideal for space-constrained, modular installations

Product Specifications

           SBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable

Important Technical Parameters





Electrical property



Temperature range

 -55～+125℃



Characteristic impedance



 50Ω

Frequency range

 DC-18GHz



Dielectric withstanding voltage



 675V

VSWR

 ≤1.05+0.0125F(GHz)



Insulation resistance



 ≥5000MΩ

Insertion loss

 ≤0.05√F(GHz)dB



Contact resistance



Center conductor

 ≤8.0mΩ

Mechanical property

Outer conductor

 ≤3.0mΩ

Durability

 500times



Materials and Surface Treatment



Center conductor



Bronze. gold plating



Insulating medium



PTFE



Outer conductor



Stainless

Sealing ring

/



Product Image Gallery

SBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible CableSBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible CableSBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible CableSBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible CableSBMA Male RF Coaxial Connector – Flange Mount, Compatible with 1# Semi-Rigid / Semi-Flexible Cable
