BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Brand Name : SIPU

Model Number : BMA-JY3Y

Certification : ISO9001, RoHS, CE

Place of Origin : CHINA

MOQ : 100

Price : DISCUSS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 120000

Delivery Time : 5-8works

Packaging Details : Carton

Product name : BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Gender : Straight

Type : Male

Material : Brass

Plating : Gold

Characteristic impedance : 50Ω

Durability : 500 times

Contact Now

BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Product Overview

The BMA series is a blind-mate, slide-on RF coaxial connector known for its compact size and high reliability. It features a spring-loaded contact structure that ensures stable mechanical engagement and excellent electrical performance. This connector is ideal for modular system integration where quick, alignment-free mating is required.

Application Scope

    Module-to-module connections in chassis and cabinets

    Radar and microwave communication systems

    Aerospace and defense equipment

Product Features

    Straight male BMA connector

    Threaded mount for secure installation

    Compatible with 2# flexible cable RG316/U

    Compact design with wide bandwidth capability

    Quick and easy blind docking with reliable contact

Product Specifications

                             BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable

Important Technical Parameters





Electrical property



Temperature range

 -55～+125℃



Characteristic impedance



 50Ω

Frequency range

 DC-18GHz



Dielectric withstanding voltage



 1000V

VSWR

 ≤1.15+0.012F(GHz)



Insulation resistance



 ≥5000MΩ



Insertion loss

/

Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

 500times



Materials and Surface Treatment





Center conductor



Beryllium bronze, gold plating

Insulating medium

 PTFE



Outer conductor



Brass, gold plating

Sealing ring

Silicon rubber

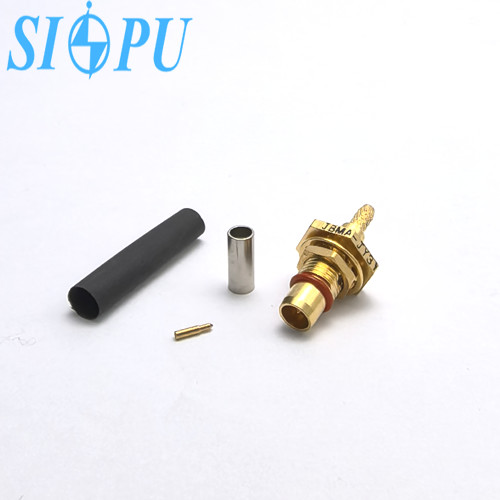

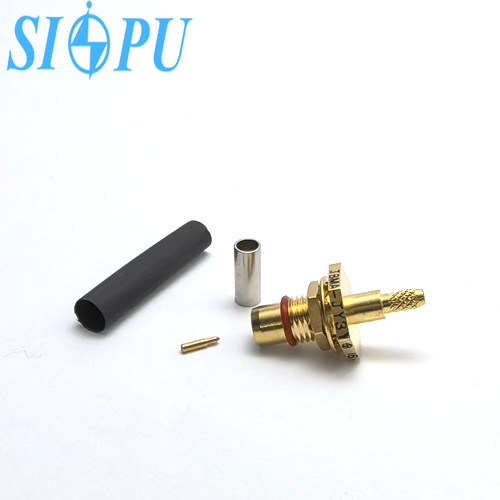

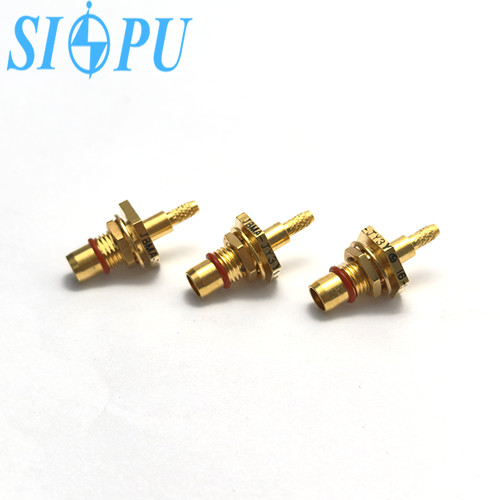

Product Image Gallery

 BMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U CableBMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U CableBMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U CableBMA Male RF Coaxial Connector – Threaded Mount, Compatible with RG316/U Cable
