BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable

Name: BMA Male RF Coaxial Connector Screw Mount Receptacle Compatible with CXN3506 Cable
Brand: SIPU
Price: 1 USD

Buy cheap BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable product

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : BMA(S)-JY3506-T

Certification : ISO9001, RoHS, CE

Packaging Details : Carton

Price : DISCUSS

Delivery Time : 5-8works

Supply Ability : 120000

Product name : BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable

Product Overview

This BMA male connector is an ultra-compact blind-mate RF coaxial connector designed for high-frequency applications. It is ideal for the interconnection of microwave circuits, particularly in chassis and cabinet assemblies requiring blind mating. The product complies with IEC 61169-33 standards, ensuring reliability and interoperability in modular systems.

Applications

Modular radar and communication systems

Microwave electronic equipment

Chassis and cabinet interconnects

Aerospace and defense modules

Product Features

Screw-mount receptacle for secure and stable installation

Blind-mate (slide-on) design for easy alignment-free connection

Mates with CXN3506 low-loss, phase-stable cable

Wide operating bandwidth

Small size and easy to install

Solderable interface for secure cable termination

Product Specifications

BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable

Important Technical Parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-22GHz
Dielectric withstanding voltage		1000V	VSWR	≤1.15+0.012F(GHz)
Insulation resistance		≥5000MΩ	Insertion loss	≤0.08√F(GHz)dB
Contact resistance	Center conductor	≤3.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.0mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

Product Image Gallery

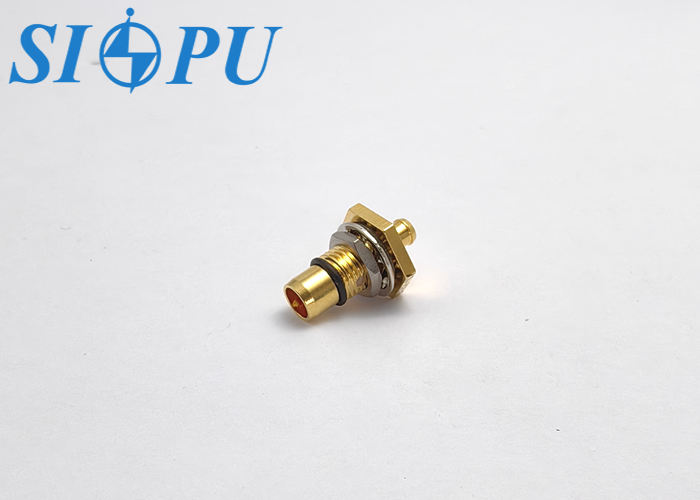

BMA Male RF Coaxial Connector – Screw Mount Receptacle, Compatible with CXN3506 Cable
