SMA Male RF Coaxial Connector – Right Angle 90°, Compatible with RG316/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-JWC3-1

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : SMA Male RF Coaxial Connector – Right Angle 90°, Compatible with RG316/U Cable

Gender : Male

Type : Right angle

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

SMA Male RF Coaxial Connector – Right Angle 90°, Compatible with RG316/U Cable

Product Overview

The SMA male RF coaxial connector is one of the most widely used RF interfaces, known for its compact size, wide frequency bandwidth, and excellent mechanical and electrical performance. The 90° right-angle design is ideal for space-constrained applications, particularly in microwave systems and RF circuits for digital communication devices.

Applications
Wireless communication, instrumentation, networking, telecommunications, and microwave systems.

Key Features

    Right-angle (90°) bent structure for space-efficient cable routing

    Threaded back cover for secure and reliable connection

    Compatible with RG316/U and 2# semi-flexible/semi-rigid coaxial cables

    Strong interchangeability with standard SMA interfaces

    High reliability and excellent electrical performance

    Easy to solder and install

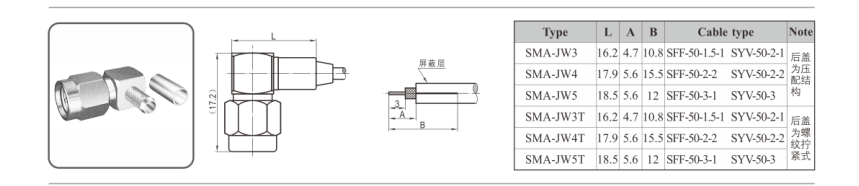

Product Appearance

       SMA Male RF Coaxial Connector – Right Angle 90°, Compatible with RG316/U Cable

SMA Male RF Coaxial Connector – Right Angle 90°, Compatible with RG316/U Cable

SMA Male RF Coaxial Connector – Right Angle 90°, Compatible with RG316/U Cable



Important Technical Parameter



Electrical property



 Temperature range -65～+125℃



Characteristic impedance



 50Ω Frequency range DC-12.4GHz



Dielectric withstanding voltage



 1000V VSWR ≤1.15+0.02F(GHz)



Insulation resistance



 ≥5000MΩ Insertion loss

≤0.08√F(GHz)dB



Contact resistance



 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times



Materials and Surface Treatment



Center conductor



 Brass, gold plating Insulating medium PTFE



Outer conductor



 Brass, gold plating Sealing ring Silicon rubber



Product Image Gallery

SMA Male RF Coaxial Connector – Right Angle 90°, Compatible with RG316/U CableSMA Male RF Coaxial Connector – Right Angle 90°, Compatible with RG316/U Cable
