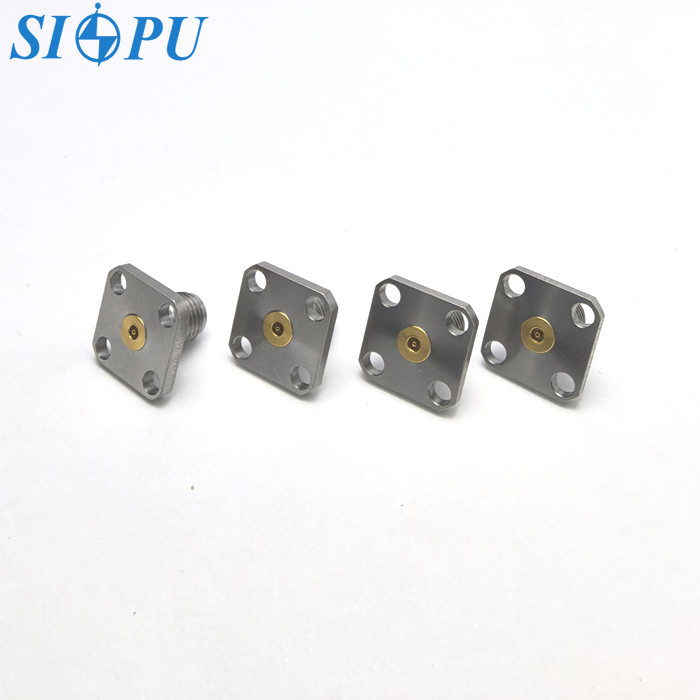

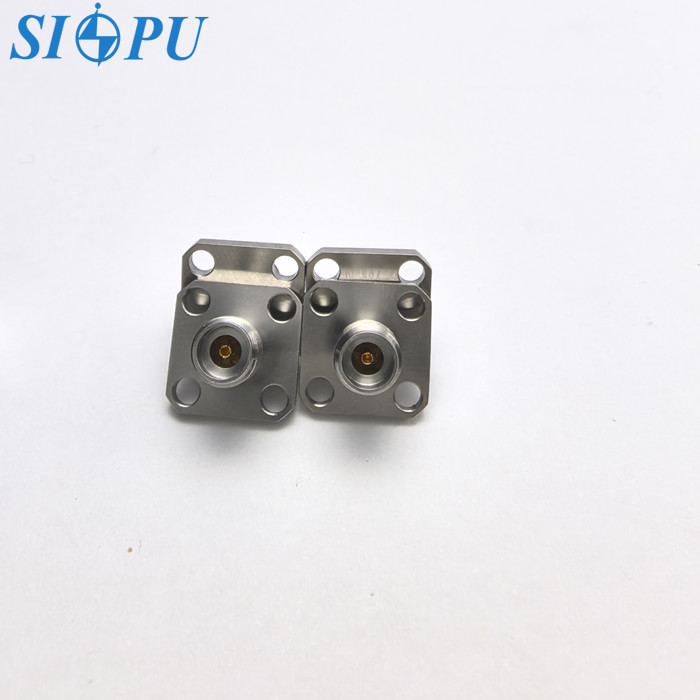

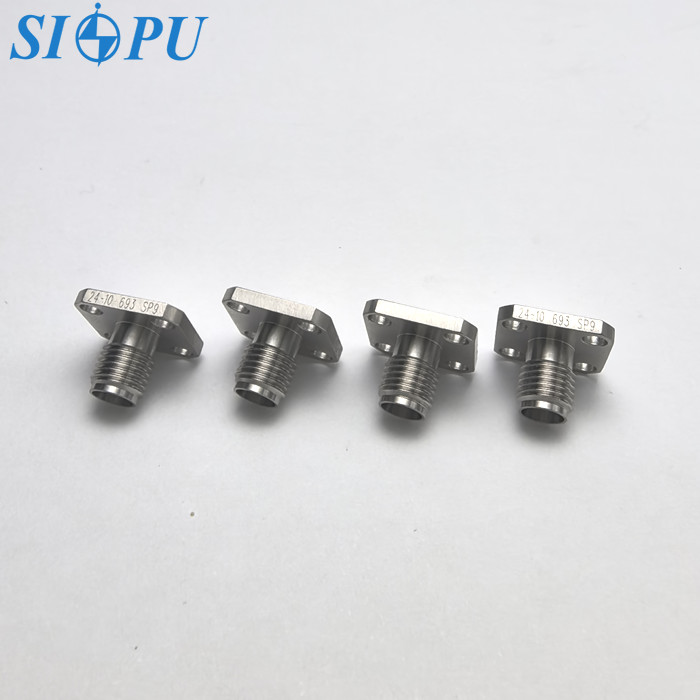

2.92 Female RF Coaxial Connector Four Hole Flange Mounted Socket

Brand Name : SIPU

Model Number : 2.92-KFD-4G

Certification : ISO9001-2017 RoHS

Place of Origin : China

MOQ : 50

Price : Discuss

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs/year

Delivery Time : 6-8weeks

Packaging Details : Carton

Product name : 2.92mm female four hole flange microstrip RF connectorxsdz

Gender : Female

Type : Straight

Characteristic impedance : 50Ω

Frequency range : DC-40GHz

Durability : 500times

Insulating medium : PEI

Material : Stainless steel

Plating : Passivation

Contact Now

2.92 Female RF Coaxial Connector Four Hole Flange Mounted Socket

Product introduction



The 2.92 series, also known as the K series, can be interchanged with the SMA series and 3.5 series. It is a more precise coaxial connector developed on the basis of SMA, using an air interface, small size, light weight, and high frequency of use.
Application scope: Widely used in modern precision metrology and various millimeter wave communication devices.
Product features: Four hole flange installation, flange size 12.7 × 12.7, outer conductor protrusion height 0.1~0.2mm. It has the characteristics of reliable connection, long lifespan, small size, high operating frequency, and excellent performance.

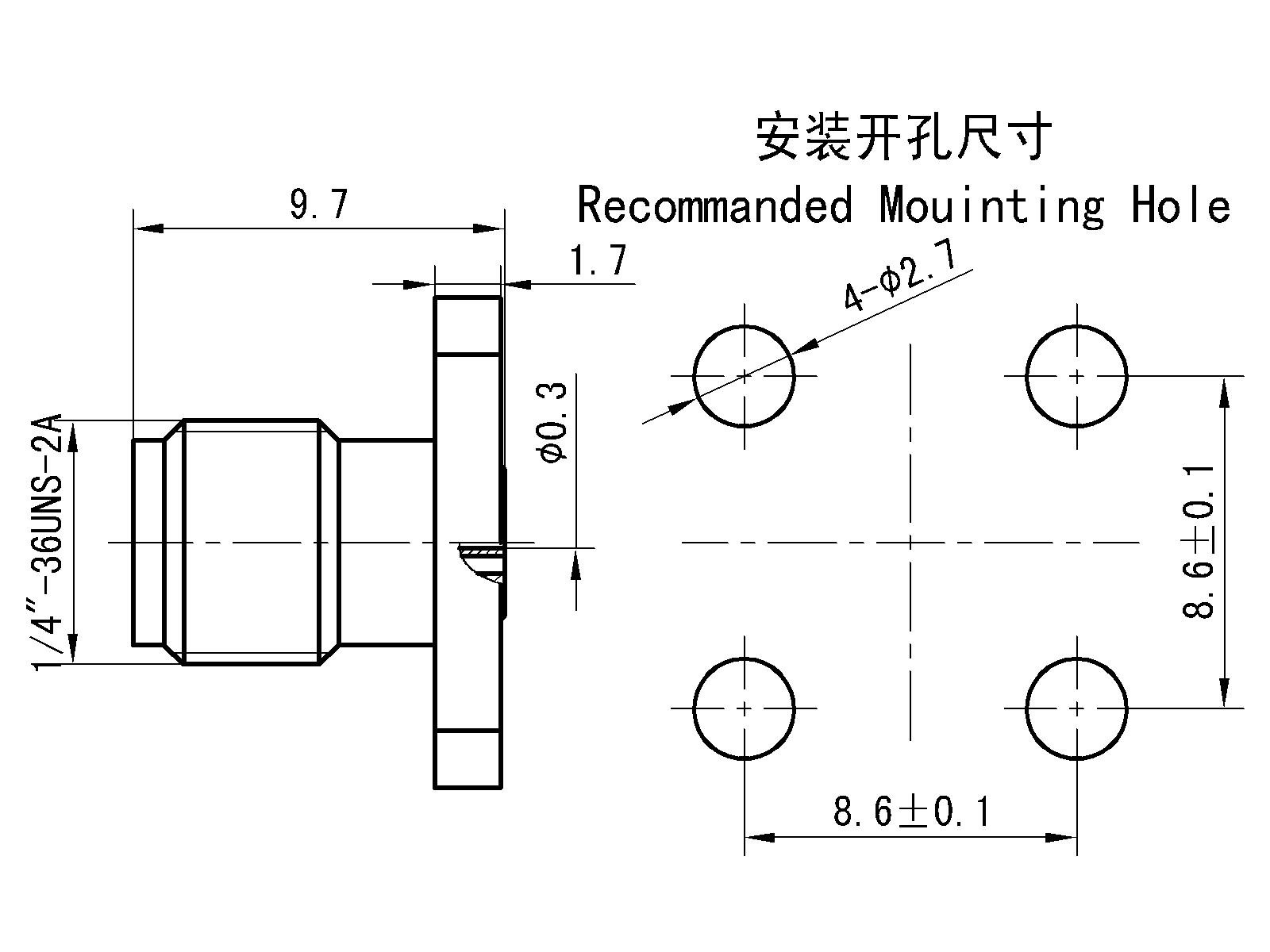

Product specifications

        2.92 Female RF Coaxial Connector Four Hole Flange Mounted Socket



Important technical parameters



Electrical property



Temperature range

 -55～+125℃



Characteristic impedance



 50Ω

Frequency range

 DC-40GHz



Dielectric withstanding voltage



 1000V

VSWR

 ≤1.1+0.01F(GHz)



Insulation resistance



 ≥5000MΩ

Insertion loss

≤0.05√F(GHz)dB



Contact resistance

Center conductor

 ≤3.0mΩ

Mechanical property

Outer conductor

 ≤2.0mΩ

Durability

500times



Materials and surface treatment



Center conductor



Beryllium copper,gold plating

Insulating medium

PEI



Outer conductor



Stainless steel,

passivating

 / /
