Right-Angle 2.92mm Male RF Connector – FSE-360 Cable Compatible

Brand Name : SIPU

Model Number : 2.92-JW360G

Certification : ISO9001-2017, RoHS, CE

Place of Origin : China

MOQ : 50

Price : Discuss

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs/year

Delivery Time : 6-8weeks

Packaging Details : Carton

Product name : Right-Angle 2.92mm Male RF Connector – FSE-360 Cable Compatible

Gender : Male

Type : Right angle

Characteristic impedance : 50Ω

Dielectric withstanding voltage : 1000V

Insulation resistance : ≥5000MΩ

Center conductor : ≤3.0mΩ

Outer conductor : ≤2.0mΩ

Frequency range : DC-40GHz

Durability : 500times

Insulating medium : PEI

Material : Stainless steel

Plating : Passivation

Contact Now

Right-Angle 2.92mm Male RF Connector – FSE-360 Cable Compatible

Product Overview

The 2.92mm series, also known as the K series, is a precision millimeter-wave RF coaxial connector designed as an enhanced evolution of the SMA series. It features an air dielectric interface and threaded coupling, and is fully interchangeable with 3.5mm and SMA connectors.

Applications

Widely used in:

    Millimeter-wave communication systems

    Precision measurement and test instrumentation

    Radar, satellite, and high-frequency RF systems

Product Features

    2.92mm male right-angle design

    Welded core conductor and shield, optimized for FSE-360 cable

    Secure threaded connection ensures reliable performance

    Supports high operating frequencies with excellent electrical characteristics

    Designed for stability in demanding environments



Product Specifications

          Right-Angle 2.92mm Male RF Connector – FSE-360 Cable Compatible

Important Technical Parameters



Electrical property



Temperature range

-65~+125℃



Characteristic impedance



50Ω

Frequency range

DC-40GHz



Dielectric withstanding voltage



1000V

VSWR

≤1.1+0.001F



Insulation resistance



≥5000MΩ

Insertion loss

≤0.05√F(GHz)dB

Contact resistance

Center conductor

≤3.0mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500times



Materials and Surface Treatment



Center conductor



Beryllium bronze,gold plating

Insulating medium

PEI



Outer conductor



Stainless steel,passivating

Sealing ring Silicon rubber

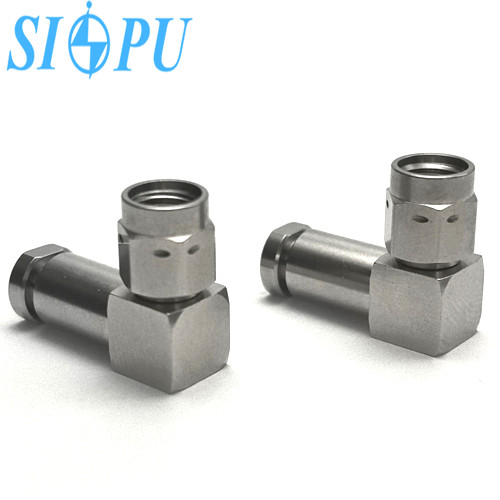

Product Image Gallery

Right-Angle 2.92mm Male RF Connector – FSE-360 Cable CompatibleRight-Angle 2.92mm Male RF Connector – FSE-360 Cable CompatibleRight-Angle 2.92mm Male RF Connector – FSE-360 Cable Compatible
