TNC Straight Male RF Adapter – Compatible with RG142/U Coaxial Cable, Safety Hole Design

Name: TNC Straight Male RF Adapter Compatible with RG142U Coaxial Cable Safety Hole Design
Brand: SIPU
Price: 1 USD

Buy cheap TNC Straight Male RF Adapter – Compatible with RG142/U Coaxial Cable, Safety Hole Design product

Brand Name : SIPU

Model Number : TNC-J5-1

Certification : ISO9001, RoHS, CE

Place of Origin : CHINA

MOQ : 100

Price : Discuss

Payment Terms : L/C, T/T, Western Union

Supply Ability : 120000pcs/year

Delivery Time : 5-6weeks

Packaging Details : Carton

Product name : TNC Straight Male RF Adapter – Compatible with RG142/U Coaxial Cable, Safety Hole Design

Gender : Male

Type : Straight

Material : Brass

Plating : Nickle

Durability : 500 times

Connecting cables : RG142B/U RG142A/U SFF-50-3

Contact Now

TNC Straight Male RF Adapter – Compatible with RG142/U Coaxial Cable, Safety Hole Design

Product Overview

The TNC series is a medium-power RF coaxial connector featuring a threaded coupling mechanism, developed in accordance with MIL-C-39012 and IEC60169-17 standards. It offers excellent electrical performance, wide frequency bandwidth, and a secure, vibration-resistant connection. These connectors are widely used and interchangeable with similar international models.

Applications
Wireless communications, radar systems, test and measurement equipment, industrial automation, and other environments requiring robust and stable RF connections.

Key Features

Straight male TNC design

Compatible with RG142/U, SFF, and similar coaxial cables

Threaded double-connection structure with safety-hole nut for enhanced reliability

Frequency range up to 11 GHz

Excellent electrical performance with low VSWR

Ideal for use in vibration-, movement-, or impact-prone environments

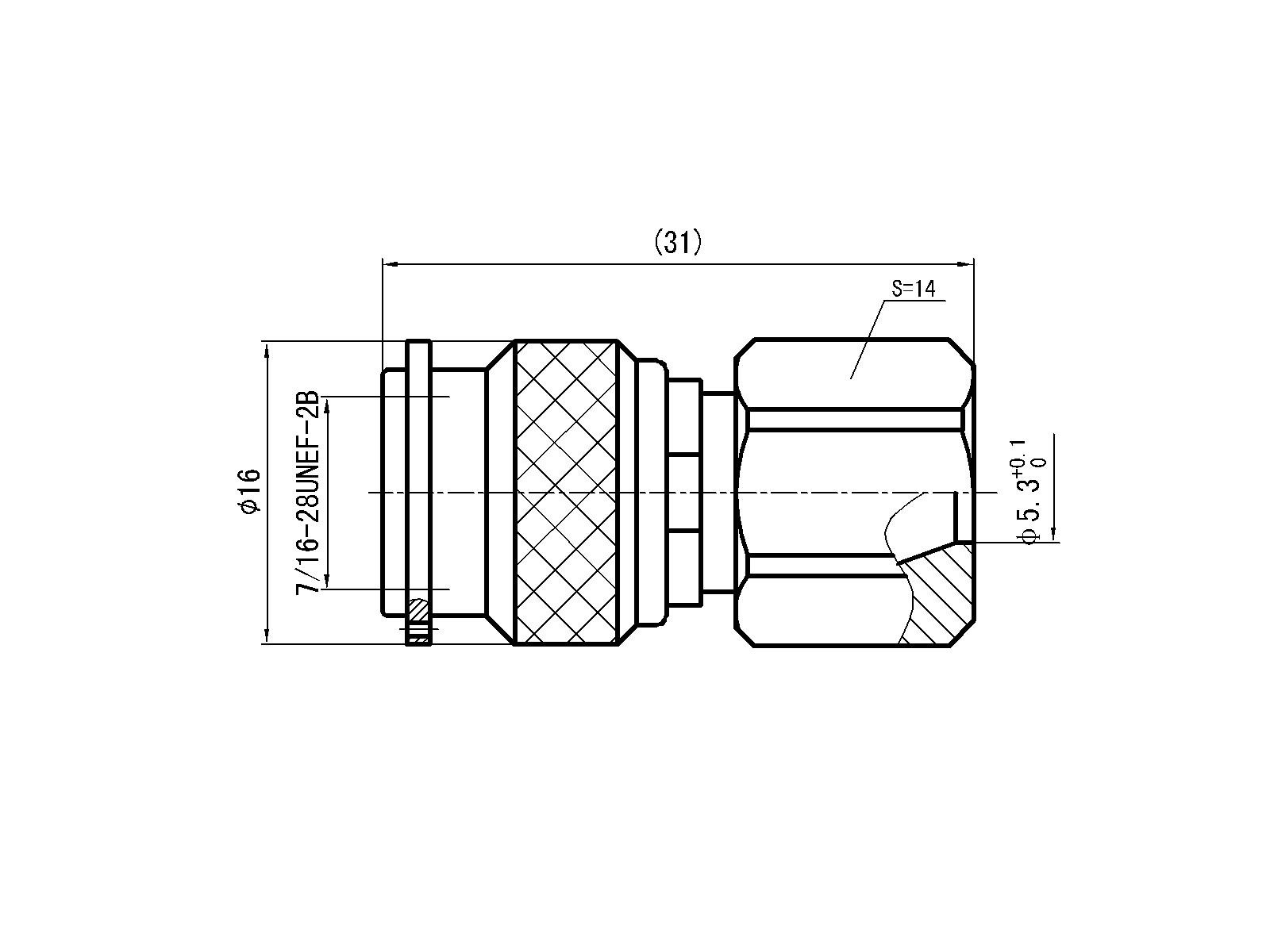

Product Specifications

TNC Straight Male RF Adapter – Compatible with RG142/U Coaxial Cable, Safety Hole Design

Important Technical Parameters

Electrical property			Temperature range	-65～+165℃
Characteristic impedance		50Ω	Frequency range	DC-11GHz
Dielectric withstanding voltage		1500V	VSWR	≤1.3
Insulation resistance		≥5000MΩ	Insertion loss	≤0.06√F(GHz)dB
Contact resistance	Center conductor	≤2.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤0.2mΩ	Durability	500Times

Materials and Surface Treatment

Center conductor

Brass, gold plating

Insulating medium

PTFE

Outer conductor

Brass, nickel plating

Sealing ring

Silicon rubber

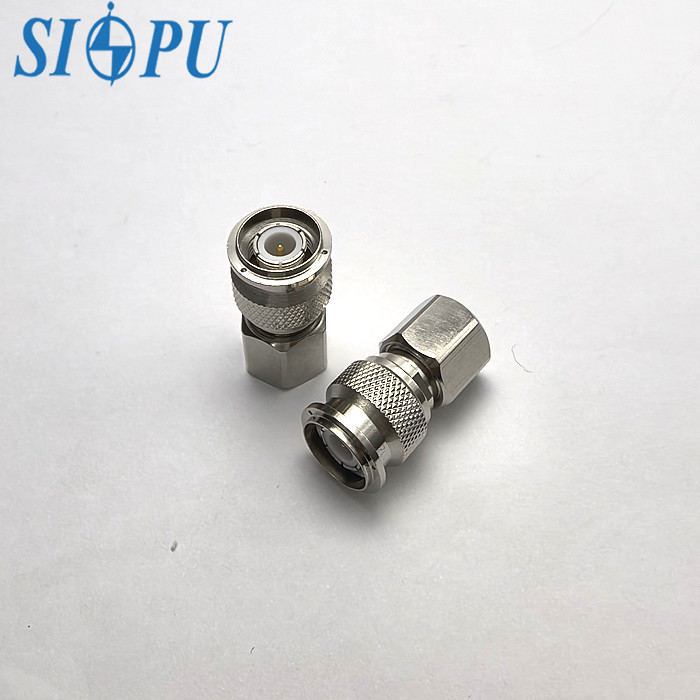

Product Image Gallery

TNC Straight Male RF Adapter – Compatible with RG142/U Coaxial Cable, Safety Hole Design

TNC Straight Male RF Adapter – Compatible with RG142/U Coaxial Cable, Safety Hole Design Images
