N Type 90 ° RF Coaxial Connector For RG 142B/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 50

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Model Number : N-JW5

Certification : ISO9001

Price : Discuss

Packaging Details : Carton

Supply Ability : 120000pcs

Delivery Time : 5-8work days

Product name : N-type 90 ° RF coaxial cable connector

Gender : MALE

Type : Right angle

Material : Btass

Plating : Nickel

High light : bandwidth turn a corner Easy installation

Contact Now

N-type 90 ° RF Coaxial Connector For RG 142B/U Cable

Product introduction

N series is a kind of threaded structure of medium power RF connector developed and produced in accordance with MIL-C-39012 and IEC60169-16, which is one of the most common types of coaxial connectors in sensing systems and wireless communications, with strong seismic resistance, high reliability, excellent mechanical and electrical properties, etc., and can be interchangeable with similar products in the world.
Applications: communication field, military system, radio equipment, ground transmission system, etc.
Product features: bent structure, mated with RG 142B/U RF coaxial cable, strong vibration resistance, band bandwidth, high reliability, easy to assemble and connect, etc.

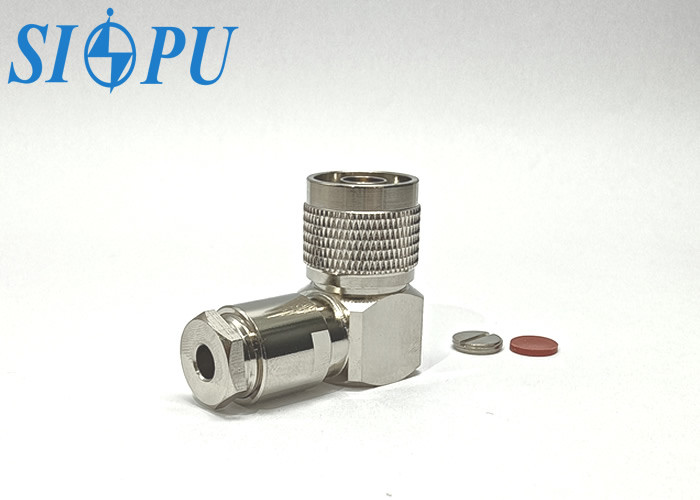

Product appearance



N Type 90 ° RF Coaxial Connector For RG 142B/U Cable



















































Technical parameter







Electrical property





Temperature range



-65～+125℃



Characteristic impedance



50Ω



Frequency range



DC-11GHz



Dielectric withstanding voltage



1500V



VSWR



≤1.5



Insulation resistance



≥5000MΩ



Insertion loss



≤0.1√F(GHz)dB





Contact resistance





Center conductor



≤1.5mΩ



Mechanical property





Outer conductor



≤0.2mΩ



Durability



500 times



Materials and surface treatmen





Center conductor





Brass,silver platin





Insulating medium





PTFE





Outer conductor





Brass,nickel plating plating





Sealing ring





Silicon rubber





Picture display



N Type 90 ° RF Coaxial Connector For RG 142B/U CableN Type 90 ° RF Coaxial Connector For RG 142B/U Cable
