N Female To N Female RF Coax Adapter Flange Mounted

Name: N Female To N Female RF Coax Adapter Flange Mounted
Brand: SIPU
Price: 1 USD

Buy cheap N Female To N Female RF Coax Adapter Flange Mounted product

Brand Name : SIPU

Place of Origin : China

MOQ : 50

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Model Number : N-KFK

Certification : ISO9001

Price : Discuss

Packaging Details : Carton

Supply Ability : 100000

Delivery Time : 5-8work days

Product name : N-type double flange installation adapter

Gender : Female

Type : Straight

Material : Brass

Plating : Nickel

High light : N Female to N Female Flange Mount RF Coax Adapter

Contact Now

N Female To N Female Flange Mount RF Coax Adapter

Product introduction

RF coaxial adapters of different specifications are the guarantee of the correct transfer of connectors between different series and within the same series, and usually play the role of bridge connection.
Scope of application: It is used for the connection and conversion of the system, and is generally used in test cables and test instruments.
Product features: Both ends are plugged with N male connectors, high reliability, strong environmental resistance, excellent performance, etc.

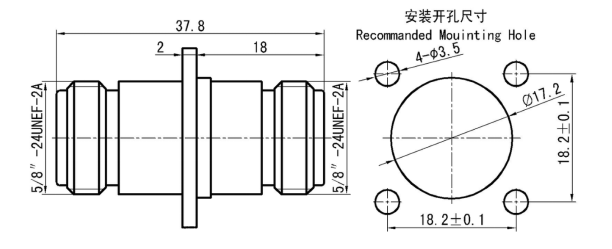

Product appearance

N Female To N Female RF Coax Adapter Flange Mounted

Main technical characteristics

Electrical property

Tempeature range

-65～+125℃

Characteristic impedance

50Ω

Frequency range

DC-11GHz

Dielectric withstanding voltage

1500V

VSWR

≤1.3

Insulation resistance

≥5000MΩ

Insertion loss

≤0.06√F(GHz)dB

Contact resistance

Center conductor

≤1.5mΩ

Mechanical property

Outer conductor

≤2.0mΩ

Durability

500次

Materials and surface treatmen

Center conductor

Bronze,gold plating

Insulating medium

PTFE

Outer conductor

Brass,nickel plating

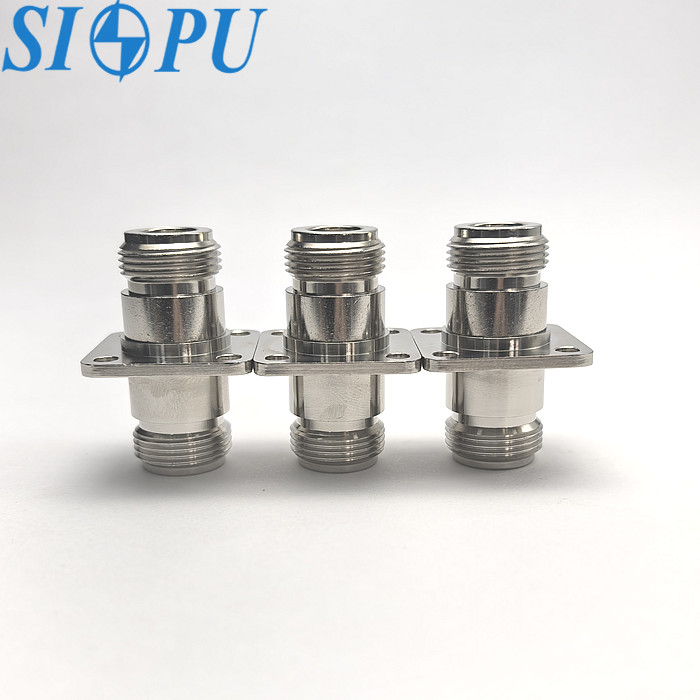

N Female To N Female RF Coax Adapter Flange Mounted
