SMB Female Threaded Mount RF Connector For RG 316/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMB-KY3

Certification : ISO9001 RoHS

Packaging Details : Carton

Supply Ability : 100000pcs/year

Price : Discuss

Delivery Time : 5-8work days

Product name : SMB female threaded mount RF connector for RG 316/U cable

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Insulating medium : PTFE

Durability : 500 times

High light : Cable connector Lightweight and compact in size

Contact Now

SMB Female Threaded Mount RF Connector For RG 316/U Cable



Product introduction



SMB is a kind of push-in locking RF coaxial connector developed and produced in accordance with MIL-C-39012 specification, which is small in size, light in weight and excellent in electrical performance, and is mainly used in the high-frequency circuit of radio equipment and electronic instruments to connect RF coaxial cables.
Scope of application: Generally used in radio equipment and electronic instruments.
Product features: Matching RG 316/U cable, small size, light weight, easy to use, etc.



Product specifications



                   SMB Female Threaded Mount RF Connector For RG 316/U Cable

Important technical parameters



Electrical property





Temperature range

 -65～+165℃



Characteristic impedance



 50Ω



Frequency range

 DC-4GHz



Dielectric withstanding voltage



 750V



VSWR

 ≤1.34



Insulation resistance



 ≥1000MΩ



Insertion loss

 ≤0.06√F(GHz)dB





Contact resistance





Center conductor



 ≤6.0mΩ



Mechanical property





Outer conductor



 ≤1.0mΩ



Durability



 500times



Materials and surface treatment



Center conductor





Beryllium bronze,gold plating





Insulating medium





PTFE





Outer conductor





Brass,gold platin



 / /

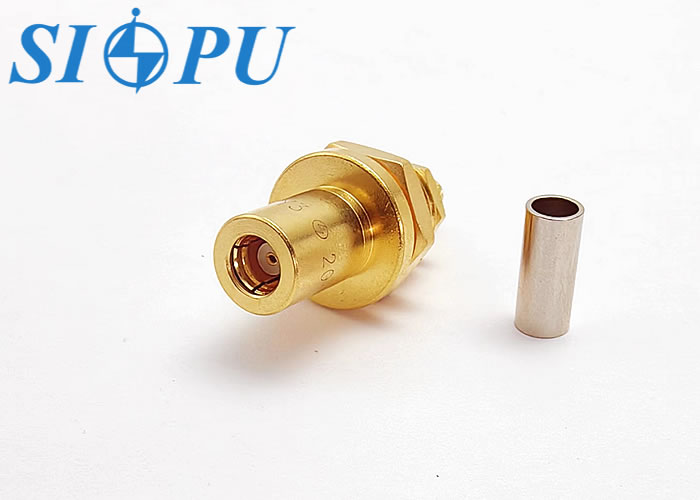

Picture display

SMB Female Threaded Mount RF Connector For RG 316/U CableSMB Female Threaded Mount RF Connector For RG 316/U Cable
