Angled RF Coaxial SMB Female Connector Mate With RG 316/U Cables

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMB-KW3

Certification : ISO9001 RoHS

Price : Discuss

Packaging Details : Carton

Supply Ability : 100000pcs/year

Delivery Time : 5-8work days

Product name : SMB female angled RF coaxial connectors mate with RG 316/U cables

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Insulating medium : PTFE

Durability : 500 times

High light : Lightweight, small in size, RF Bend angle cable connector

Contact Now

SMB Female Angled RF Coaxial Connectors Mate With RG 316/U Cables

Product introductio

SMB is a small push-in locking connector with a compact design, which is mainly used to connect RF coaxial cables in high-frequency circuits of radio equipment and electronic instruments.
Scope of application: Generally used in electronic instruments and radio equipment.
Product features: bent structure, mating RG 316/U cable, small size, light weight, excellent electrical performance, easy to use, etc.

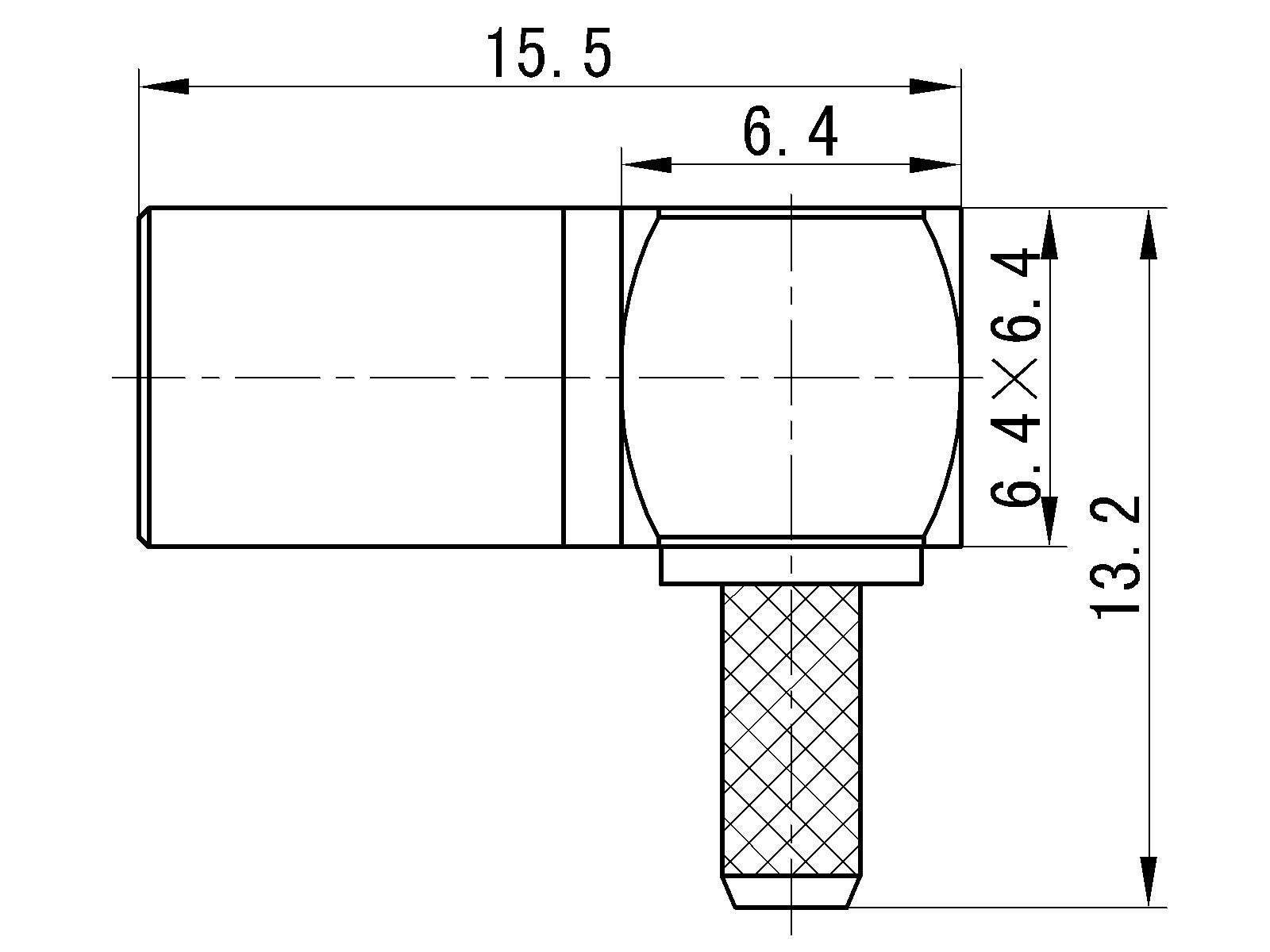

Product specifications

                      Angled RF Coaxial SMB Female Connector Mate With RG 316/U Cables



Important technical parameters







Electrical property



 Temperature range -65～+165℃



Characteristic impedance



 50Ω Frequency range DC-4GHz



Dielectric withstanding voltage



 750V VSWR ≤1.5



Insulation resistance



 ≥1000MΩ Insertion loss ≤0.1√F(GHz)dB



Contact resistance



 Center conductor ≤6.0mΩ Mechanical property
Outer conductor ≤1.0mΩ Durability 500times



Materials and surface treatment





Center conductor



 Beryllium bronze,gold plating Insulating medium PTFE



Outer conductor



 Brass,gold plating / /



Picture display



Angled RF Coaxial SMB Female Connector Mate With RG 316/U CablesAngled RF Coaxial SMB Female Connector Mate With RG 316/U Cables
