SMA Male To SMP Female Connector For CXN3506 RF Coaxial Cable Assembly

Name: SMA Male To SMP Female Connector For CXN3506 RF Coaxial Cable Assembly
Brand: SIPU
Price: 1 USD

Buy cheap SMA Male To SMP Female Connector For CXN3506 RF Coaxial Cable Assembly product

Brand Name : SIPU

Model Number : SMA-J3506G/SMP-KW3506-CXN3506-L

Certification : ISO9001

Place of Origin : China

MOQ : 50

Price : Provide a quotation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000pcs/year

Delivery Time : 6-8work days

Packaging Details : Carton

Product name : SMA male connector to SMP female connector for CXN3506 RF coaxial cable assembly

Characteristic impedance : 50Ω

Dielectric withstanding voltage : ≤±3°

Frequency range : DC-15GHz

High light : High frequency low loss stable phase cable assembly

Contact Now

SMA Male Connector To SMP Female Connector For CXN3506 RF Coaxial Cable Assembly

Product introduction

RF coaxial cable components typically consist of three parts: connectors at both ends, cables, and heat shrink tubing.

According to the flexibility of cables, they can be divided into three categories: semi steel cables, semi flexible cables, and flexible cables. This cable component is a flexible cable component.

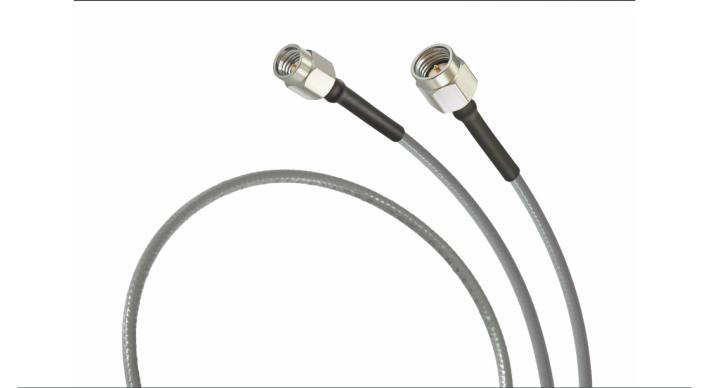

Product features: SMA-J3506G RF connector on the left end, SMP-KW3506 on the right end, matched with CXN3506 RF coaxial cable. It belongs to soft, low loss, stable phase cable, with shielding efficiency better than 90dB, ultra-low loss, good flexibility, light weight, frequency up to 18GHz, minimum bending radius (static state) 12.7mm, cable speed ratio of 83%. At a frequency of 18G, the phase consistency is ≤ 3 °. The length can be adjusted according to user requirements.

Application scope: communication, testing, radar, navigation, etc.

Product specifications and testing indicators

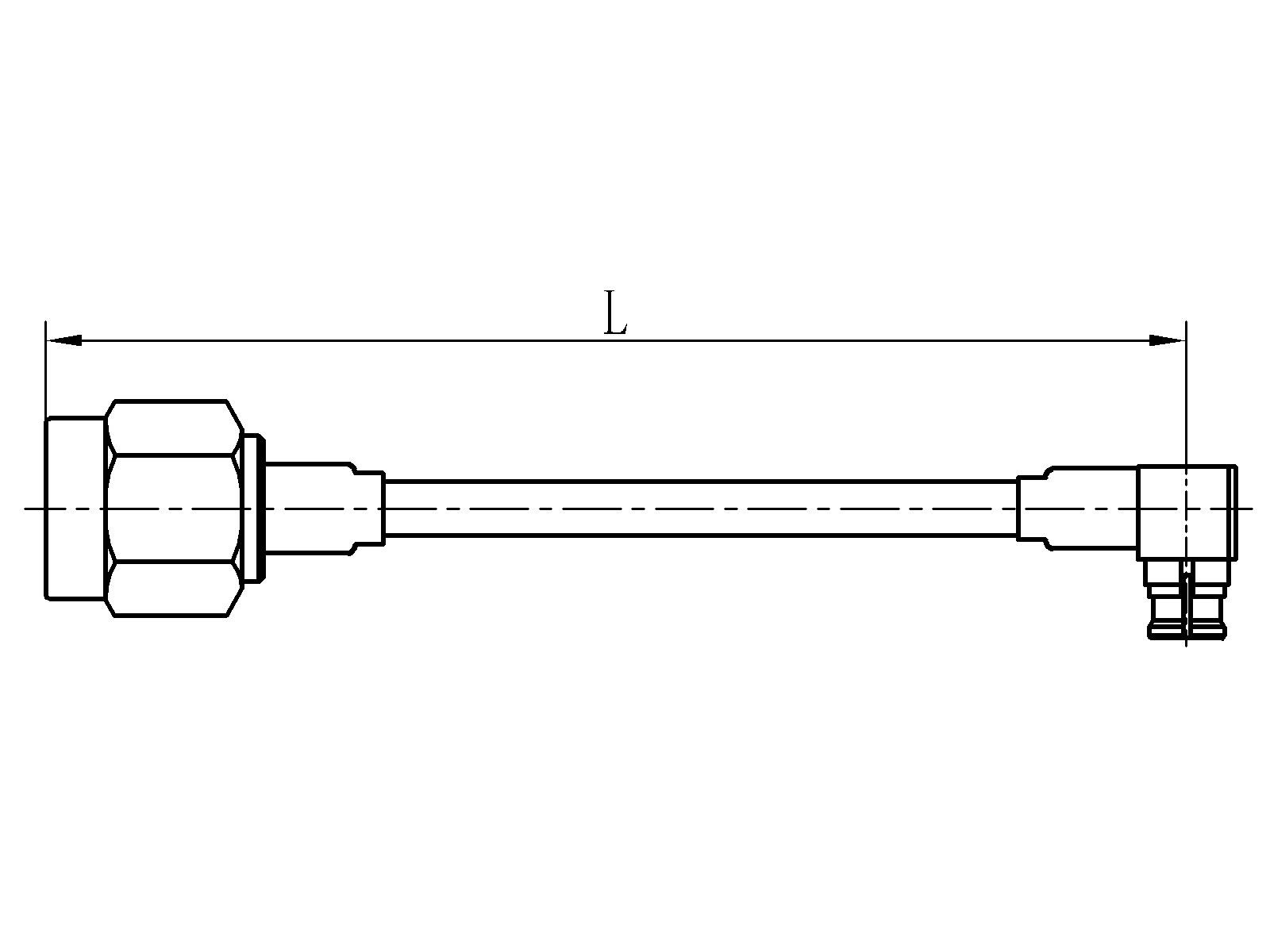

SMA Male To SMP Female Connector For CXN3506 RF Coaxial Cable Assembly

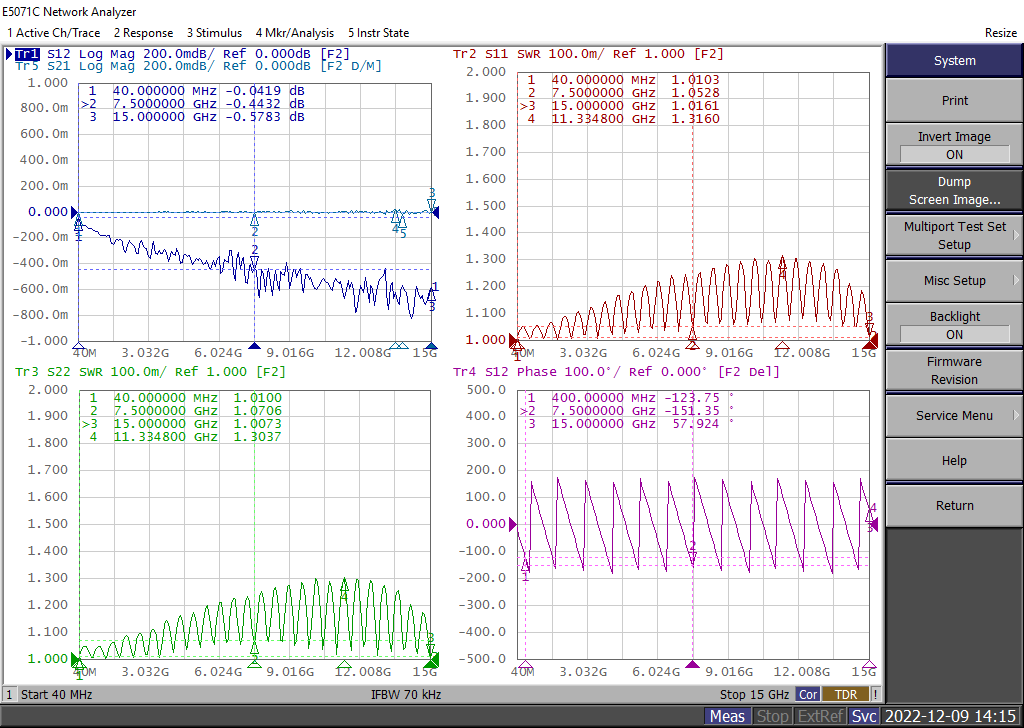

测试图(L=200mm)

Important technical parameters

Electrical property

Temperature range

-55～+125℃

Characteristic impedance

50Ω

Frequency range

DC-15GHz

Dielectric withstanding voltage

500V

VSWR

≤1.4

Insulation resistance

≥5000MΩ

Insertion loss

≤0.7dB(L=200MM)

Phase equalization

≤±3°

Insertion loss consistency

≤±0.15dB

Picture display

SMA Male To SMP Female Connector For CXN3506 RF Coaxial Cable Assembly
