Male Welding CXN3506 SSMA Cable Assembly High Frequency Low Loss Stable Phase

Name: Male Welding CXN3506 SSMA Cable Assembly High Frequency Low Loss Stable Phase
Brand: SIPU
Price: 1 USD

Buy cheap Male Welding CXN3506 SSMA Cable Assembly High Frequency Low Loss Stable Phase product

Brand Name : SIPU

Model Number : SSMA-J3506G-T/SSMA-J3506G-T-CXN3506-L

Place of Origin : China

MOQ : 50

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Certification : ISO9001

Price : Provide a quotation

Packaging Details : carton

Supply Ability : 120000pcs/year

Delivery Time : 6-8work days

Product name : SSMA male head welding CXN3506 cable, high frequency, low loss, stable phase

Characteristic impedance : 50Ω

Dielectric withstanding voltage : ≤±3°

Frequency range : DC-20GHZ

High light : high frequency, low loss, stable phase，Soft cable

Contact Now

SSMA Male Head Welding CXN3506 Cable, High Frequency, Low Loss, Stable Phase

Product introduction

RF coaxial cable components typically consist of three parts: connectors at both ends, cables, and heat shrink tubing.

According to the flexibility of cables, they can be divided into three categories: semi steel cables, semi flexible cables, and flexible cables.

Product features: The two end connectors are SSMA-J3506G-T RF connectors, matched with CXN3506 RF coaxial cables, which belong to flexible cables with shielding efficiency better than 90dB, ultra-low loss, good flexibility, light weight, frequency up to 30GHz, and minimum bending radius (static) 12.7mm. The length L (mm) can be adjusted according to user requirements.

Application scope: mobile communication, communication terminals, military electronics, aerospace, radio frequency identification, testing instruments, etc.

Product specifications and testing indicators

Male Welding CXN3506 SSMA Cable Assembly High Frequency Low Loss Stable Phase

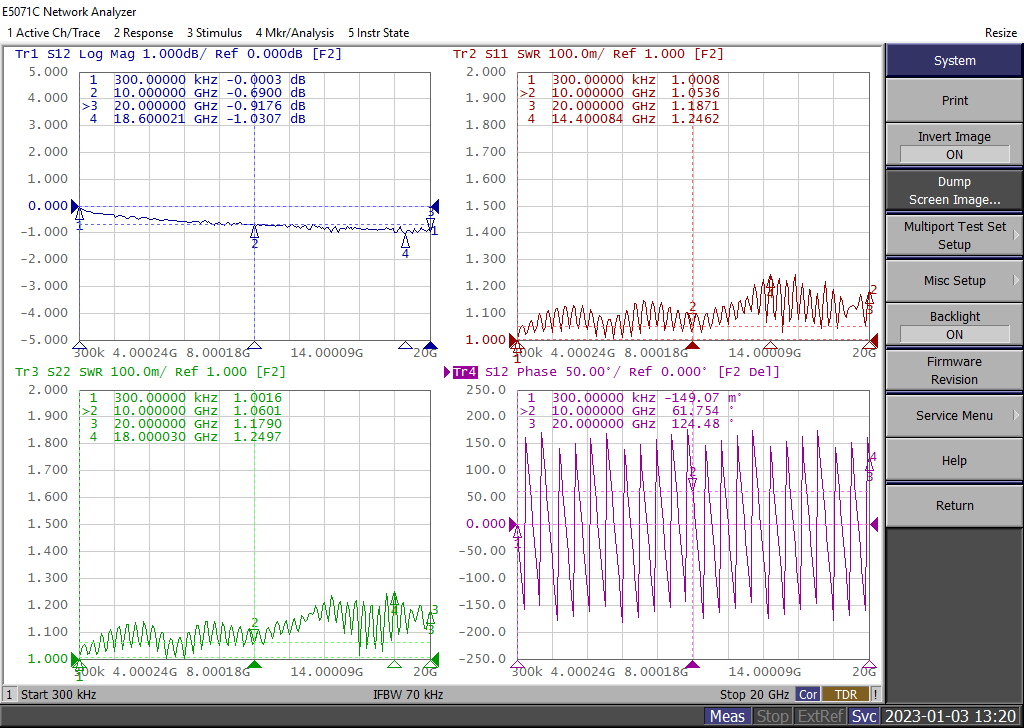

测试图(L=260mm)

Important technical parameters

Electrical property

Temperature range

-55～+125℃

Characteristic impedance

50Ω

Frequency range

DC-20GHz

Dielectric withstanding voltage

500V

VSWR

≤1.4

Insulation resistance

≥5000MΩ

Insertion loss

≤(0.4+3.07L)dB

Phase equalization

≤±3°

Insertion loss consistency

≤±0.1dB

Picture display

Male Welding CXN3506 SSMA Cable Assembly High Frequency Low Loss Stable Phase
