BNC Male Coaxial RF Termination Load – 1W Power Rating

  • 1
  • 2
  • 3

Brand Name : SIPU

Model Number : BNC-50JR-1W

Certification : ISO9001, R0HS, CE

Place of Origin : China

MOQ : 50

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : Carton

Price : Discuss

Supply Ability : 100000pcs/year

Delivery Time : 5-8work days

Product name : BNC Male Coaxial RF Termination Load – 1W Power Rating

Gender : Male

Type : Straight

Material : Brass

Plating : Nickel

power : 1W

Characteristic impedance : 50Ω

Contact Now

BNC Male Coaxial RF Termination Load – 1W Power Rating

Product Overview

This coaxial termination load is designed for precision RF and microwave system testing. It ensures proper impedance matching and signal absorption, helping prevent reflections and system damage. Ideal for use in RF signal transmission lines, microwave instruments, and wireless communication systems.

Application Scope

    RF signal transmission system testing

    Wireless communication equipment

    Electronic instrumentation

    Microwave device testing and calibration

Product Features

    High electrical performance with low VSWR

    Excellent mechanical durability and stability

    Compact and rugged design

    Reliable 50Ω impedance match for accurate signal termination

Product Specifications

                   BNC Male Coaxial RF Termination Load – 1W Power Rating

Important Technical Parameters





Electrical property



Temperature range

 -65～+165℃



Characteristic impedance



 50Ω

Frequency range

 DC-4GHz



Power



 1W

VSWR

Ordinary level:≤1.25

Precision gradee:≤1.1



Mechanical property



Durability

500times



Materials and Surface Treatment





Center conductor



phosphorus coppergold plating

Insulating medium

PTFE



Outer conductor



Brass, nickel plating

Sealing ring

Silicon rubber

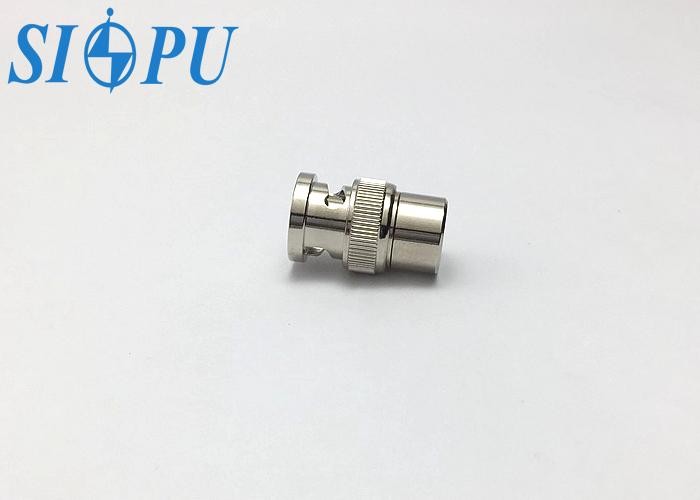

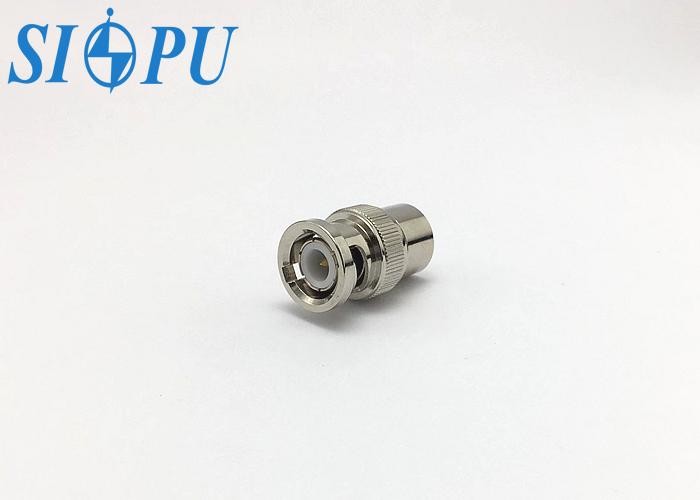

Product Image Gallery

BNC Male Coaxial RF Termination Load – 1W Power RatingBNC Male Coaxial RF Termination Load – 1W Power RatingBNC Male Coaxial RF Termination Load – 1W Power Rating
