Product name : MCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable

Gender : Female

Type : Right angle

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

MCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable

Product Overview

The MCX series is a push-in self-locking RF connector known for its compact size, light weight, quick mating/unmating, and reliable electrical contact. It is widely used in applications where installation space is limited and high-performance signal transmission is required.

Applications

    Transmission systems

    Base station equipment

    Instrumentation

    GPS modules

    Antennas

Product Features

    Right-angle (bent) MCX female connector

    Compatible with RG316/U coaxial cable

    Compact and lightweight for space-constrained environments

    Easy cable assembly and secure connection

    Stable and high-performance electrical characteristics

Product Specifications

MCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable



Important Technical Parameters



Electrical property



Temperature range

 -65～+125℃



Characteristic impedance



 50Ω

Frequency range

 DC-6GHz



Dielectric withstanding voltage



 750V

VSWR

 ≤1.3



Insulation resistance



 ≥1000MΩ

Insertion loss

≤0.1√F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times



Materials and Surface Treatment



Center conductor



Beryllium copper, gold plating

Insulating medium

PTFE



Outer conductor



Brass, gold plating

 / /



Product Image Gallery

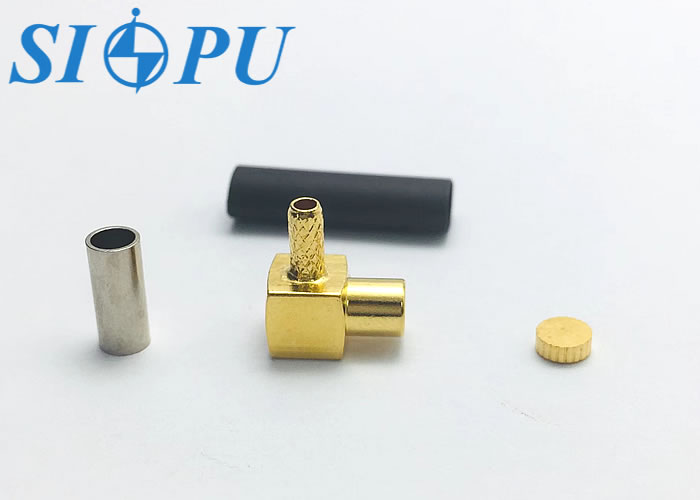

MCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U CableMCX Female RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable




Product Tags:

Female Right Angle MCX Connector



RF Right Angle MCX Connector



RG 316/U Cable RF Connector
