Right-Angle Male RF Coaxial Connector – Compatible with RG178/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : MMCX-JW2-3

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 5-8week days

Product name : Right-Angle Male RF Coaxial Connector – Compatible with RG178/U Cable

Gender : Male

Type : Right angle

Durability : 500 times

Material : Brass

Plating : Gold

Insulating medium : PTEE

Contact Now

Right-Angle Male RF Coaxial Connector – Compatible with RG178/U Cable

Product Overview

The MMCX series RF coaxial connector is a miniature plug-in connector, even smaller than the MCX series. It features a compact design, light weight, and a reliable plug-in self-locking structure that offers resistance to shock and vibration. Ideal for applications where space and weight are critical, MMCX connectors are widely used in compact communication and network equipment.

Applications

    Wireless communication devices

    Aerospace systems

    Medical equipment

    Embedded modules and compact electronics

Product Features

    Right-angle (bent) male connector

    Compatible with RG178/U coaxial cable

    Plug-in self-locking design for quick connect/disconnect

    Small size and lightweight

    Good shock and impact resistance

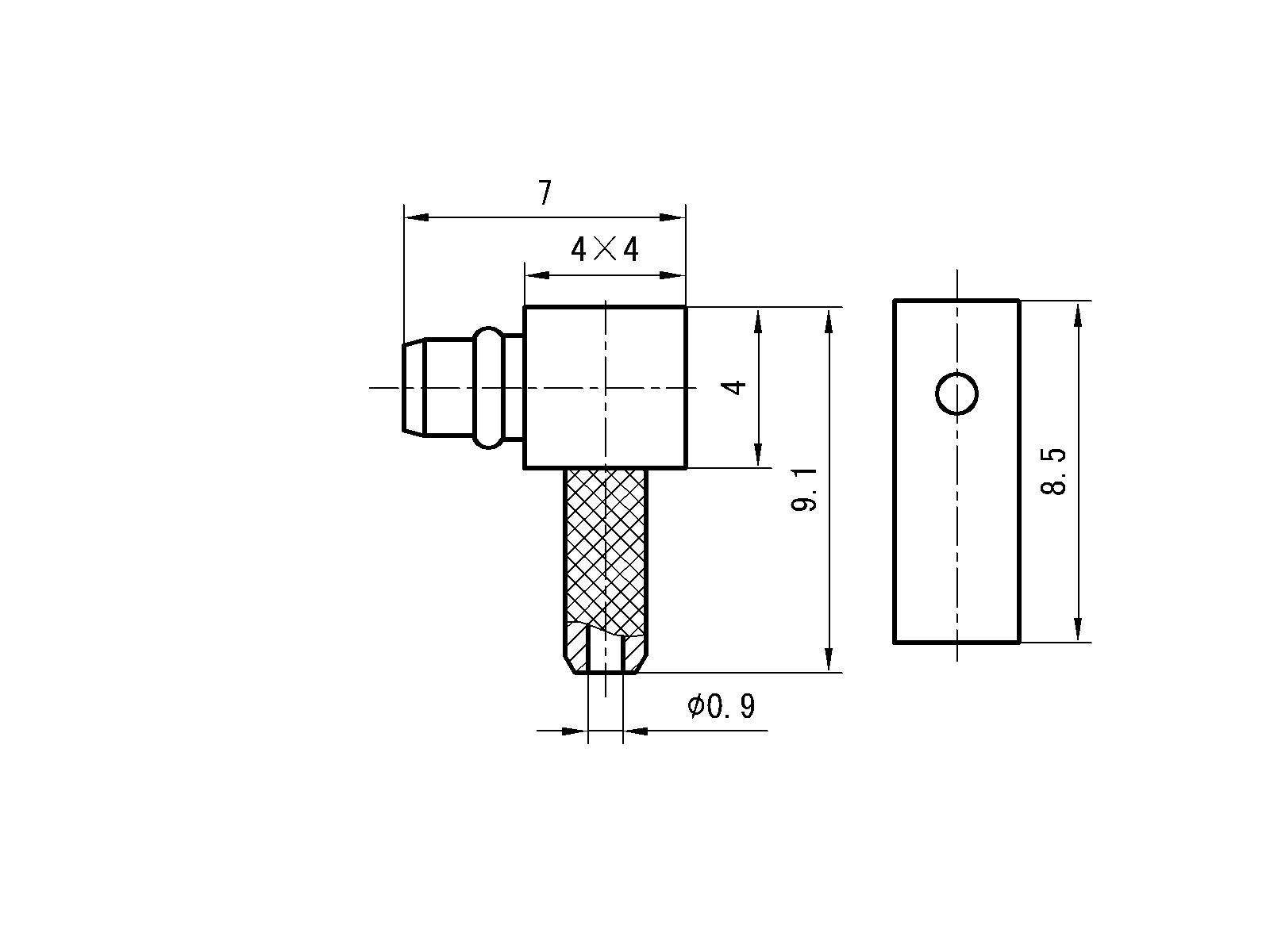

Product Specifications

     Right-Angle Male RF Coaxial Connector – Compatible with RG178/U Cable

Important Technical Parameters





Electrical property





Temperature range

 -40～+90℃





Characteristic impedance



 50Ω



Frequency range

 DC-6GHz





Dielectric withstanding voltage



 500V



VSWR

 ≤1.4

Insulation resistance

 ≥1000MΩ



Insertion loss



≤0.1√F(GHz)dB





Contact resistance

Center conductor

 ≤10.0mΩ



Mechanical property

Outer conductor

 ≤5.0mΩ



Durability

 500 Cycles



Materials and Surface Treatment



Center conductor



Bronze, gold plating

Insulating medium

 PTFE



Outer conductor



Brass, gold plating

Snap ring

Beryllium copper,gold plating



Product Image Gallery

Right-Angle Male RF Coaxial Connector – Compatible with RG178/U CableRight-Angle Male RF Coaxial Connector – Compatible with RG178/U Cable
