Double-Headed SMA Female RF Adapter – Straight Through, Flange Mount

Brand Name : SIPU

Model Number : SMA-KFKG

Certification : ISO9001-2017, RoHS, CE

Place of Origin : China

MOQ : 100

Price : Discuss

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs/yesr

Delivery Time : 6-8Weeks

Packaging Details : Carton

Product name : Double-Headed SMA Female RF Adapter – Straight Through, Flange Mount

Gender : Female

Type : Straight

Material : Stainless steel

Plating : Passivation

Durability : 500 times

Contact Now

Double-Headed SMA Female RF Adapter – Straight Through, Flange Mount

Product Overview

RF coaxial adapters serve as essential bridge components for ensuring proper signal transmission between connectors of the same or different series. This double-headed SMA female adapter provides a reliable, straight-through connection, making it ideal for modular integration and system interfacing.

Applications
Commonly used for system interconnection and signal conversion in test cables, measurement instruments, RF modules, and communication equipment.

Key Features

    Four-hole flange mount for secure and stable panel installation

    Compatible with SMA and 2.92mm series male connectors

    Straight-through signal path with low insertion loss

    Excellent electrical performance across a wide frequency range

    High connection reliability and strong resistance to environmental stress

    Ideal for high-frequency applications and test environments

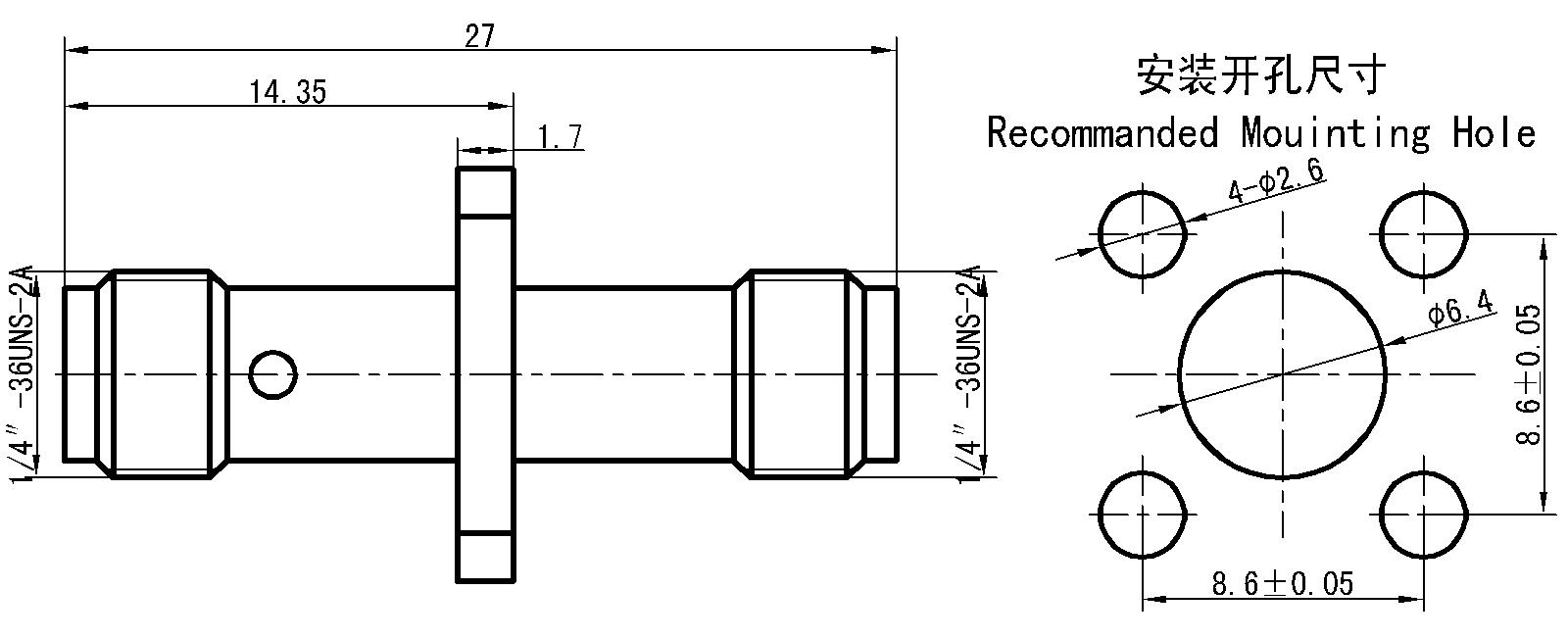

Product Appearance

Double-Headed SMA Female RF Adapter – Straight Through, Flange Mount

Important Technical Parameter



Electrical property



 Temperature range -65～+125℃



Characteristic impedance



 50Ω Frequency range DC-18GHz



Dielectric withstanding voltage



 1000V VSWR ≤1.05+0.012F(GHz)



Insulation resistance



 ≥5000MΩ Insertion loss ≤0.06√F(GHz)dB



Contact resistance



 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times



Materials and Surface Treatment



Center conductor



 Beryllium bronze, gold plating Insulating medium



PTFE



Outer conductor



 Stainless steel, passivating / /

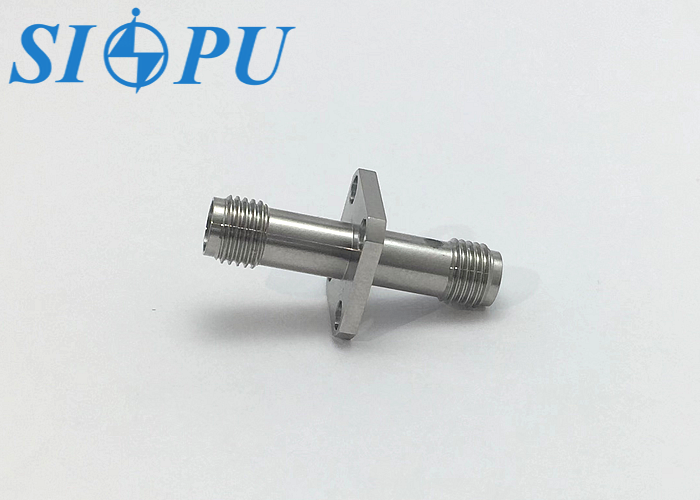

Product Image Gallery

Double-Headed SMA Female RF Adapter – Straight Through, Flange MountDouble-Headed SMA Female RF Adapter – Straight Through, Flange Mount
