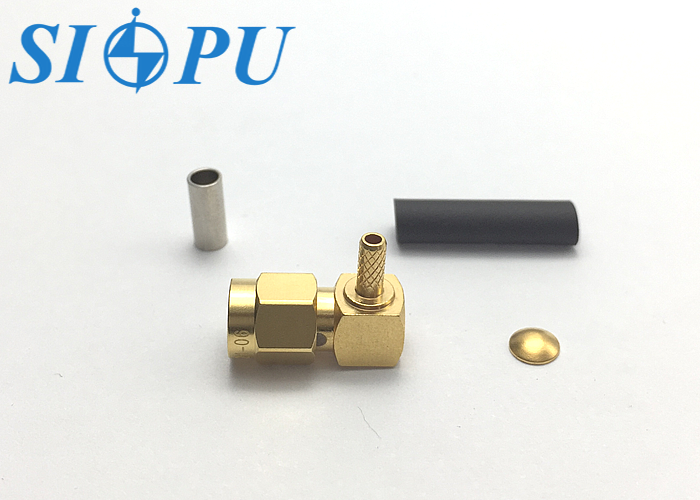

SMA Male RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable

  • 1
  • 2
  • 3

Brand Name : SIPU

Place of Origin : China

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : SMA-JW3-7

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 6-8Weeks

Supply Ability : 100000pcs/yesr

Product name : SMA Male RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable

Gender : Male

Type : Right angle

Material Science : Brass

Plating : Gold

Durability : 500 times

Contact Now

SMA Male RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable



Product Overview

The SMA RF coaxial connector is one of the most widely used RF connectors due to its compact size, wide frequency bandwidth, superior mechanical and electrical performance, and high reliability. It complies with MIL-C-39012 and IEC 60169-15 standards and is fully interchangeable with similar international products.

Applications:
Wireless communication, test and measurement equipment, network infrastructure, and telecommunications systems.

Product Features:

    Right-angle design for space-saving installations

    Compatible with RG 316/U coaxial cable

    High performance and strong signal integrity

    Excellent interchangeability

    Reliable connection and easy assembly

Product Structure Diagram

SMA Male RF Coaxial Connector – Right Angle, Compatible with RG316/U Cable



Important Technical Parameters



Electrical property



 Temperature range -65～+125℃



Characteristic impedance



 50Ω Frequency range DC-18GHz



Dielectric withstanding voltage



 1000V VSWR ≤1.06+0.015F(GHz)



Insulation resistance



 ≥5000MΩ Insertion loss ≤0.08√F(GHZ)dB



Contact resistance



 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability



500times

Materials and Surface Treatment



Center conductor



 Brass, gold plating Insulating medium PTFE



Outer conductor



 Brass, gold plating Sealing ring Silicon rubbe
