MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Name: MCX Female RF Coaxial Connector Microstrip Threaded Mount
Brand: SIPU
Price: 1 USD

Buy cheap MCX Female RF Coaxial Connector – Microstrip, Threaded Mount product

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : MCX-KYD9

Packaging Details : Carton

Certification : ISO9001-2017, RoHS, CE

Price : Discuss

Delivery Time : 5-8Weeks

Product name : MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Gender : Female

Type : Straight

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Product Overview

The MCX connector features a push-in coupling structure that enables quick and easy connections. With its compact size, light weight, and reliable performance, it is widely used in applications where installation space is limited and high-frequency signal integrity is required.

Applications

Antennas

Base station systems

GPS modules

Instrumentation

Transmission systems

Product Features

Threaded mounting, typically installed within a cavity

Compact and lightweight design

Easy and secure connection

Excellent electrical performance in high-frequency applications

Product Specifications

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount

Important Technical Parameters

Electrical property			Temperature range	-65～+125℃
Characteristic impedance		50Ω	Frequency range	DC-6GHz
Dielectric withstanding voltage		750V	VSWR	≤1.3
Insulation resistance		≥1000MΩ	Insertion loss	≤0.1√F(GHz)dB
Contact resistance	Center conductor	≤5.0mΩ	Mechanical property
Contact resistance	Outer conductor	≤2.5mΩ	Durability	500times

Materials and Surface Treatment

Center conductor

Beryllium bronze, gold plating

Insulating medium

PTFE

Outer conductor

Brass, gold plating

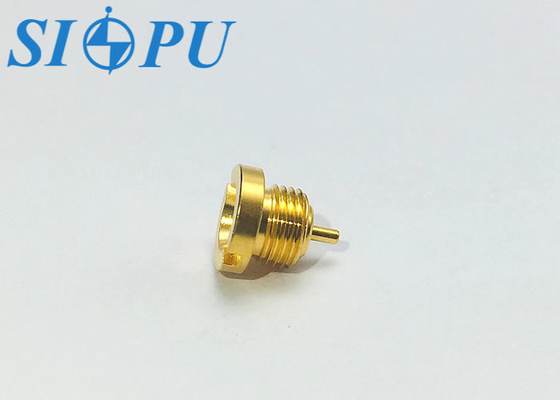

Product Image Gallery

MCX Female RF Coaxial Connector – Microstrip, Threaded Mount
