MCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U Cable

  • 1
  • 2

Brand Name : SIPU

Place of Origin : CHINA

MOQ : 100

Payment Terms : L/C, T/T, Western Union

Model Number : MCX-JW2-3

Certification : ISO9001-2017, RoHS, CE

Packaging Details : Carton

Price : Discuss

Delivery Time : 5-8Weeks

Product name : MCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U Cable

Gender : Male

Type : Right angle

Material : Brass

Plating : Gold

Durability : 500 times

Contact Now

MCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U Cable

Product Overview

MCX series RF coaxial connectors feature a compact plug-in interface design, offering small size, light weight, excellent electrical performance, and high reliability. They are widely used in applications with strict space constraints and high-frequency performance requirements.

Applications

    Base station equipment

    Transmission systems

    Instrumentation

    GPS modules

    Antennas

Product Features

    Right-angle (bent) male connector

    Compatible with RG178/U coaxial cable

    Compact and lightweight design

    Quick and easy connection

    Stable and reliable electrical performance

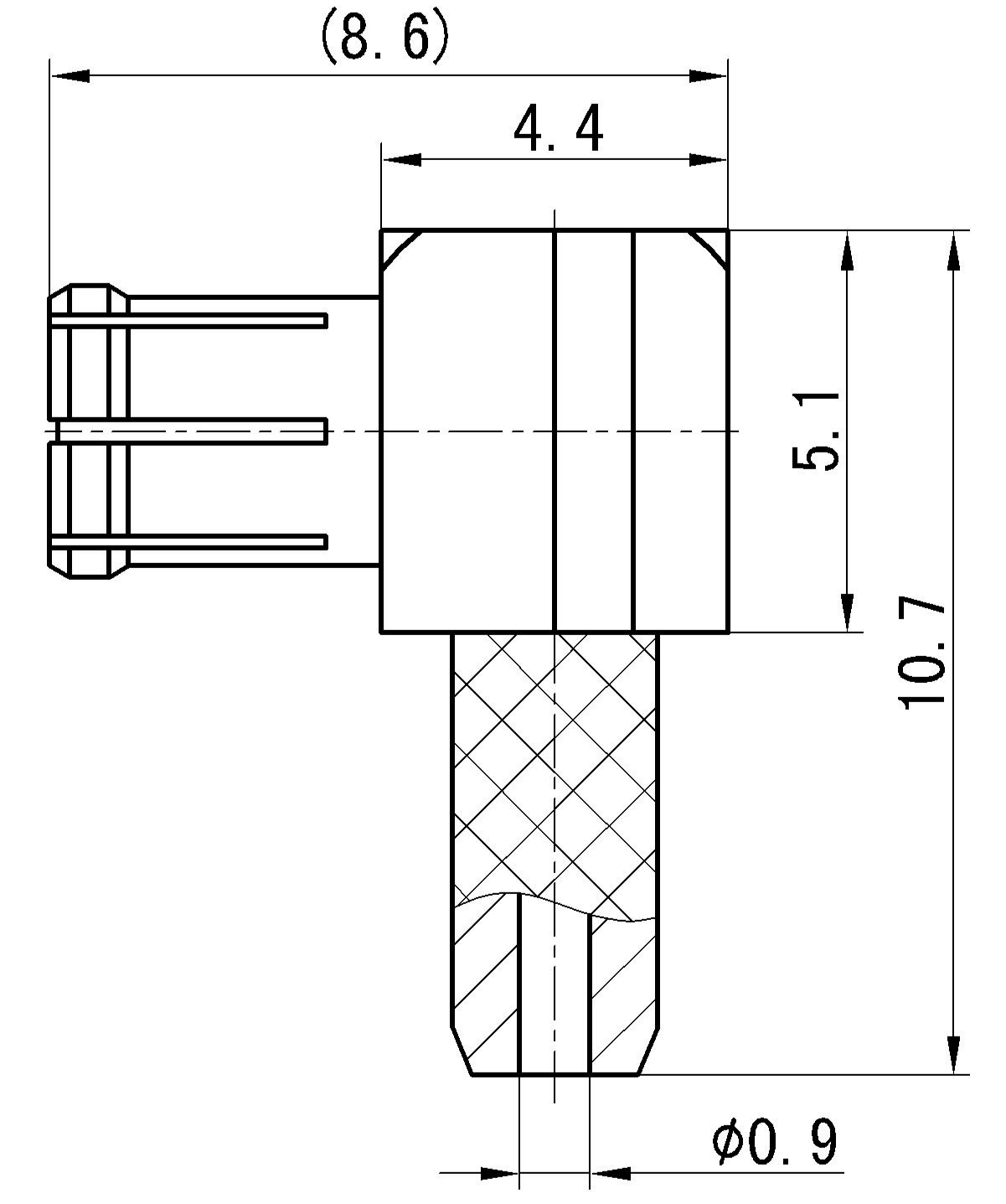

Product Specifications

                            MCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U Cable



Important Technical Parameters



Electrical property



Temperature range

 -55～+125℃



Characteristic impedance



 50Ω

Frequency range

 DC-6GHz



Dielectric withstanding voltage



 750V

VSWR

 ≤1.4



Insulation resistance



 ≥1000MΩ

Insertion loss

≤0.1 √F(GHz)dB

Contact resistance

Center conductor

 ≤5.0mΩ

Mechanical property

Outer conductor

 ≤2.5mΩ

Durability

 500times



Materials and Surface Treatment



Center conductor



Brass, gold plating

Insulating medium

PTFE



Outer conductor



Brass+Beryllium copper, gold plating

 / /

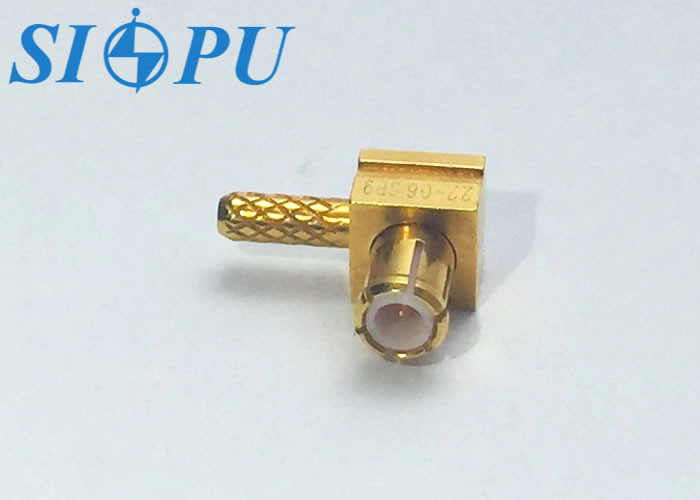

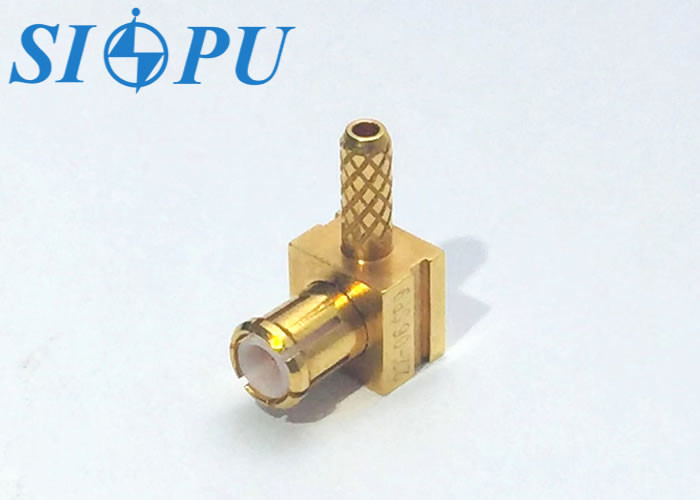

Product Image Gallery

MCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U CableMCX Male Right-Angle RF Coaxial Connector – Compatible with RG178/U Cable
