N-to-N-male straight through RF coaxial adapter, precision testing fixture

Brand Name : SIPU

Model Number : N-50JJ-2

Certification : ISO9001

Place of Origin : China

MOQ : 50

Price : Discuss

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 100000pcs

Delivery Time : 5-8work days

Packaging Details : Carton

Characteristic impedance : 50Ω

Durability : 500 times

Product name : N-male to N-male RF coaxial adapter

Gender : Male

Type : Straight

Material : Brass

Plating : Nickel

High light : N-male to N-male RF coaxial adapter

Contact Now

N-to-N-male straight through RF coaxial adapter, precision testing fixture



Product introduction



RF coaxial adapter ensures the correct transmission of connectors between different series and within the same series, usually serving as a bridge.
Product features: 50 ohms, both ends are equipped with N series female connectors, which have strong environmental resistance, high reliability, and excellent performance.
Scope of application: Used for conversion and connection between different series and interfaces, generally used for testing cables, testing instruments, equipment interfaces, etc.

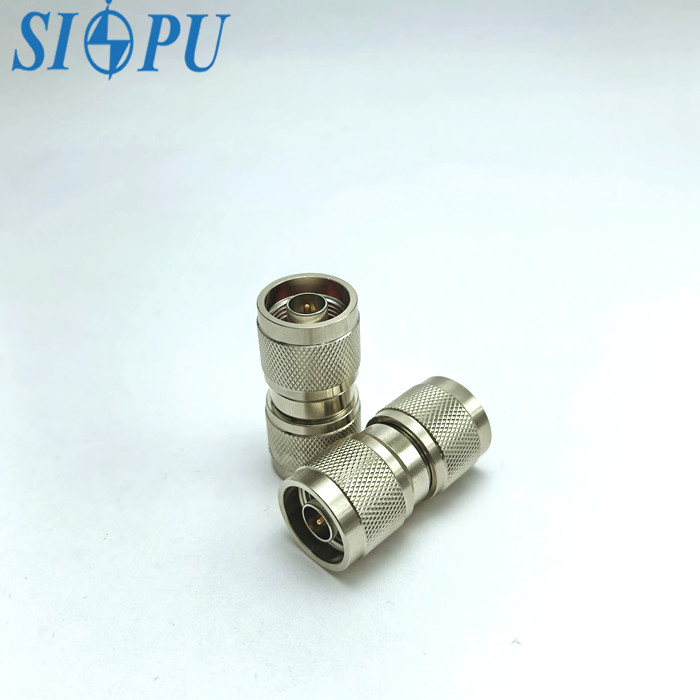

Product appearance

             N-to-N-male straight through RF coaxial adapter, precision testing fixture

Important technical parametersr





Electrical property



 Temperature range -65～+125℃



Characteristic impedance



 50Ω Frequency range DC-11GHz



Dielectric withstanding voltage



 1500V VSWR ≤1.3



Insulation resistance



 ≥5000MΩ Insertion loss ≤0.06√F(GHz)dB
Contact resistance Center conductor ≤1.5mΩ Mechanical property
Outer conductor ≤0.2mΩ Durability 500 times





Materials and surface treatmen





Center conductor



 Brass,silver plating Insulating medium PTFE



Outer conductor



 Brass,nickel plating Sealing ring Silicon rubber



Picture display

N-to-N-male straight through RF coaxial adapter, precision testing fixtureN-to-N-male straight through RF coaxial adapter, precision testing fixture
